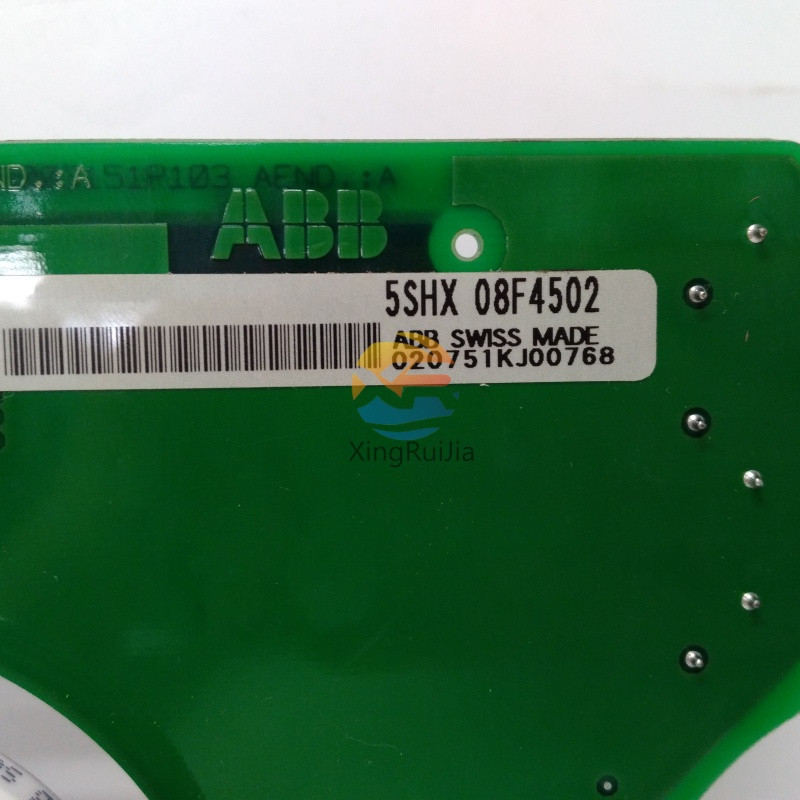

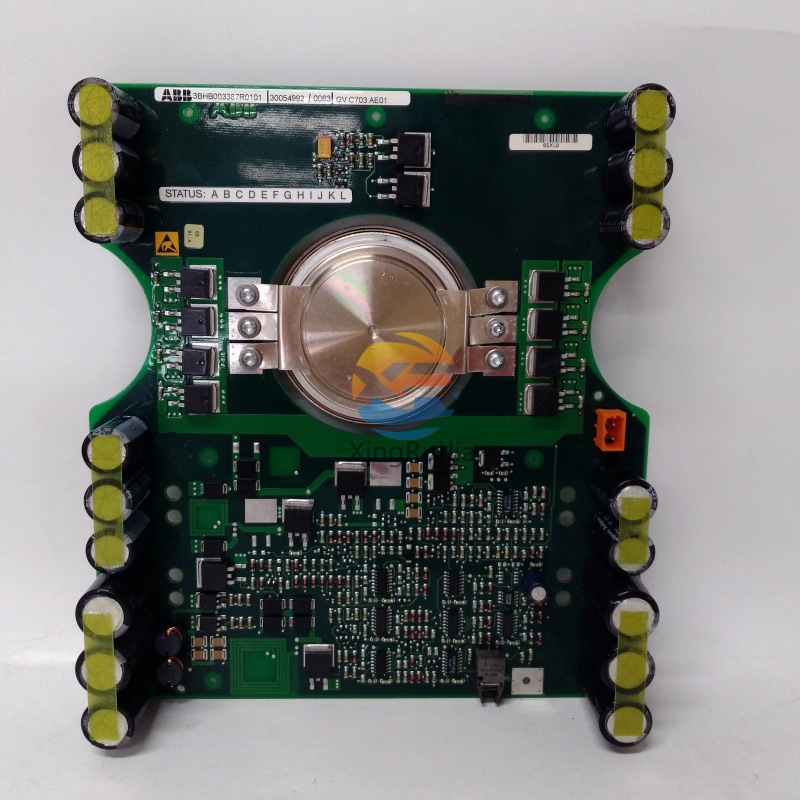

ABB 5SHX08F4502 High-Power IGBT Semiconductor Module

The ABB 5SHX08F4502 is a premium-grade, high-voltage Insulated Gate Bipolar Transistor (IGBT) module engineered for the most demanding power conversion applications. As a key component in advanced medium-voltage drive systems like the ABB ACS2000, it delivers unmatched reliability, efficiency, and control for large-scale industrial machinery

This page details the technical specifications, unique features, and critical applications of this powerful semiconductor.

1. Product Overview & Core Functionality

The 5SHX08F4502 is a fundamental power electronics component designed for high-voltage inverters. Its primary role is to act as a fast-switching valve in power converters, efficiently transforming direct current (DC) into precisely controlled alternating current (AC) to manage the speed and torque of high-power motors.

• Product Type: Dual IGBT Module with Integrated Anti-Parallel Diodes

• Core Function: High-voltage power switching and conversion in multi-level inverter topologies.

• Primary Application: Essential component and spare part for the ABB ACS2000 series of medium-voltage AC drives.

• Technology: Advanced high-voltage IGBT platform, optimized for low loss and high frequency switching.



2. Key Technical Specifications & Parameters

The 5SHX08F4502 is defined by its high-voltage capability, making it suitable for powerful industrial systems.

3. Primary Applications & Use Cases

This module is built for heavy-duty applications where equipment failure is not an option.

• Industrial AC Drives: Specifically engineered for the ABB ACS2000 medium voltage drive family.

• Mega-Watt Scale Machinery: Ideal for controlling large fans, pumps, compressors, and conveyors in industries like oil & gas, mining, metals, and cement.

• Infrastructure & Utilities: Used in critical applications such as water treatment plants, power generation facilities, and marine propulsion systems.

• High-Power Test Benches: Employed in rigorous testing environments for motors and other power electronic equipment.



4. Design Features & Engineering Advantages

Several key design innovations make the 5SHX08F4502 a superior choice for high-power density systems.

• Enhanced Voltage Rating (4500V): Provides a higher safety margin and reliability in medium-voltage networks, reducing stress on the component and extending lifespan.

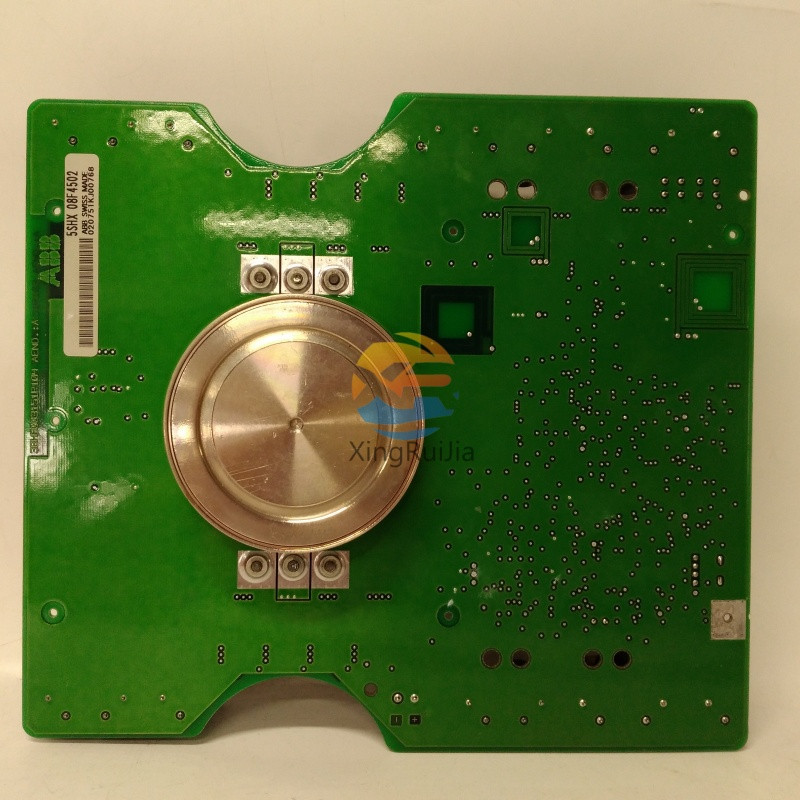

• Press-Pack Housing: This technology eliminates bond wires and solder failures, offering superior thermal cycling capability, low thermal impedance, and a non-destructive failure mode in short-circuit conditions.

• Optimized Switching Characteristics: Designed for a balance between low switching losses (for efficiency) and manageable dv/dt (for motor insulation protection).

• High Isolation Integrity: Guarantees safe operation by providing strong electrical isolation between the live semiconductor and the grounded heat sink.

5. Benefits & Value Proposition

Investing in the genuine ABB 5SHX08F4502 translates directly into operational excellence and cost savings.

• Enhanced System Reliability: The high-voltage rating and robust press-pack design minimize the risk of unexpected downtime in critical processes.

• Improved Energy Efficiency: Low conduction and switching losses contribute to higher overall drive efficiency, leading to significant reductions in electricity costs.

• Reduced Lifecycle Cost: Superior durability and reliability mean longer service intervals and lower total cost of ownership.

• Maximum Process Uptime: By ensuring the drive's power core remains operational, this module helps maintain continuous production and high throughput.

6. Compatibility, Replacement & Support

Correct identification and installation are crucial for optimal performance and safety.

• Direct Compatibility: This module is a direct-fit component designed specifically for use in ABB ACS2000 drive cabinets. It is not interchangeable with modules from other drive series (e.g., ACS1000).

• Genuine ABB Quality: Using an authentic 5SHX08F4502 guarantees perfect electrical and mechanical compatibility, ensuring the performance and longevity of your drive system.

• Professional Installation Required: Due to the high voltages involved and the critical nature of press-pack mounting torque, installation must be performed by ABB-certified or highly trained personnel following official procedures.

• Global Support Network: ABB offers worldwide technical support, detailed documentation, and service for this product.

Call to Action

Need a reliable ABB 5SHX08F4502 IGBT module?
Ensure your ACS2000 drive maintains its peak performance and reliability.Contact our experts today for competitive pricing, verification, and fast delivery.
