Overview: A Complete Power Stack Repair Solution

This page details a set of critical components commonly used together in ABB ACS 1000, ACS 5000, and other medium-voltage drive power stacks. The combination of the 5SHY6545L0001 IGBT module, the AC10272001R0101 driver board, and the 5SXE10-0181 DC-link capacitor is essential for the repair, maintenance, and refurbishment of these industrial drive systems.

Using matched, genuine ABB components ensures optimal performance, maintains factory-rated efficiency, and guarantees the longevity and reliability of your drive.

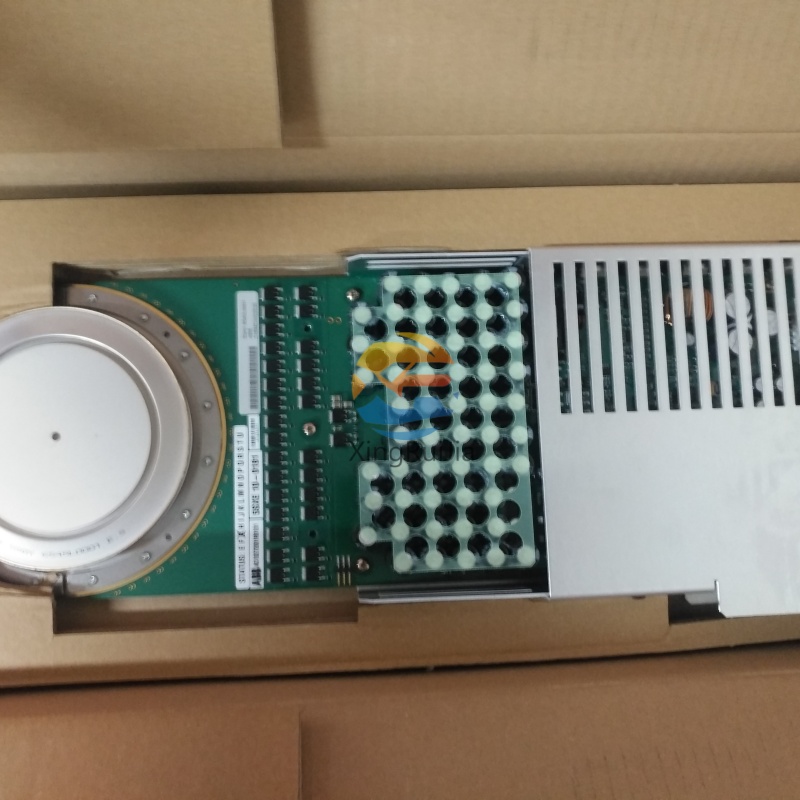

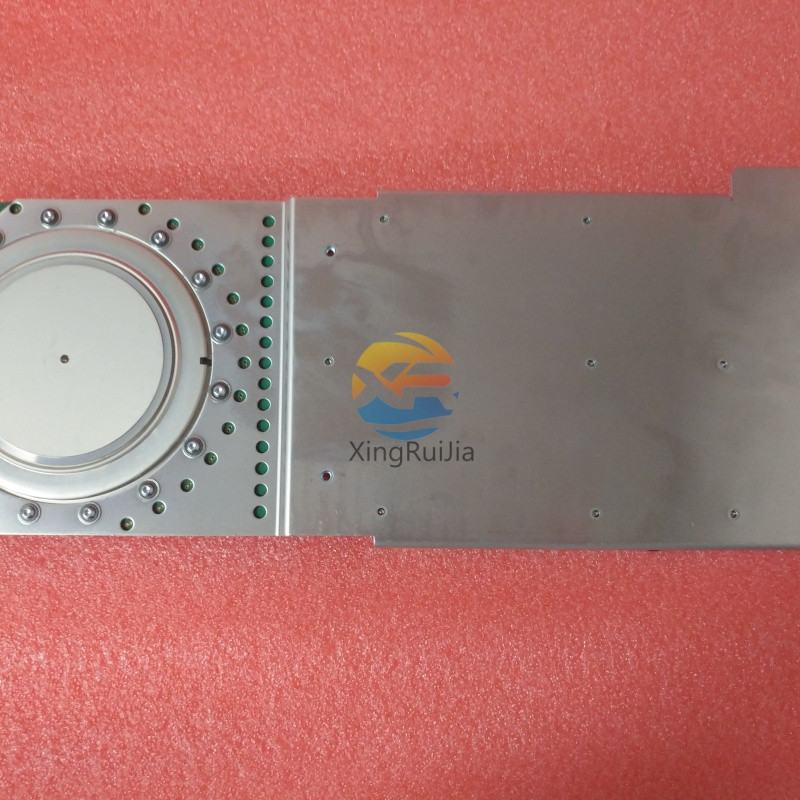

Component 1: ABB 5SHY6545L0001 IGBT Module

The core power switching device. This IGBT module is responsible for converting DC power to AC output that controls your motor.

• Type: IGBT Module (HiPak or similar)

• Function: Power switching unit in the inverter section.

• Key Feature: High-power density and reliability for industrial variable-frequency drives (VFDs).

• Common Use: ABB ACS1000, ACS5000 series drives.

[CHECK PRICE & AVAILABILITY FOR 5SHY6545L0001]

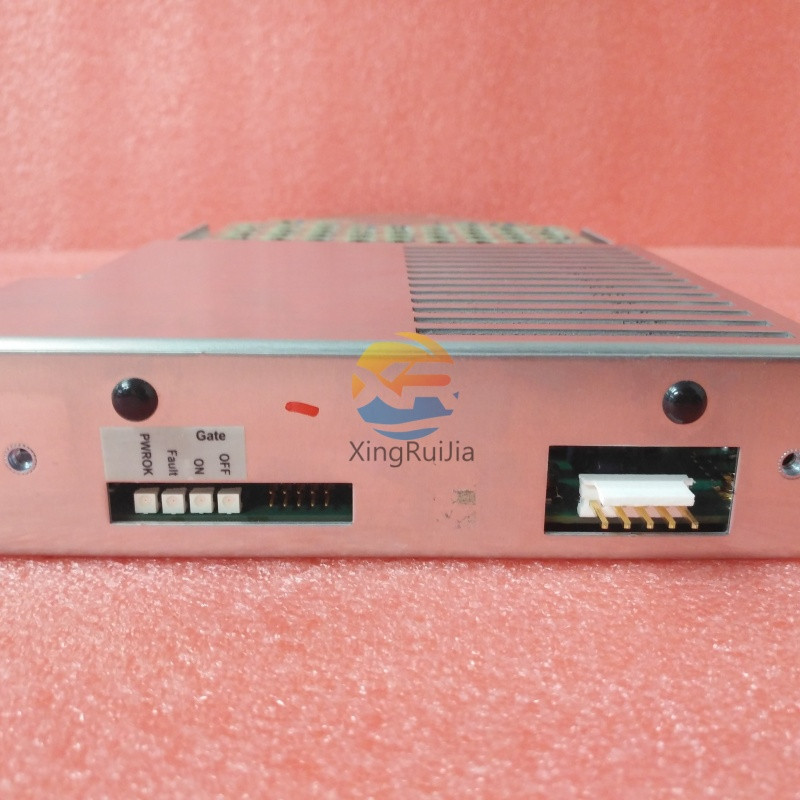

Component 2: ABB AC10272001R0101 Driver Board / Card

The "brain" for the IGBT. This printed circuit board (PCB) provides the precise control signals needed to switch the IGBT on and off correctly and protects it from faults.

• Type: Gate Driver Board / Interface Board

• Function: Controls and drives the IGBT modules; provides isolation and protection.

• Key Feature: Critical for ensuring safe and efficient operation of the power stack.

• Note: Always check the exact drive model and stack type for compatibility.

[CHECK PRICE & AVAILABILITY FOR AC10272001R0101]

Component 3: ABB 5SXE10-0181 DC-Link Capacitor

The energy buffer. This capacitor smooths the DC voltage in the intermediate circuit, filters ripple, and provides stable power to the IGBT modules.

• Type: DC-Link Filter Capacitor

• Function: Stores energy and filters the DC bus voltage.

• Key Feature: High capacitance and low ESR (Equivalent Series Resistance) for robust performance.

• Note: Capacitors are wear items and may need replacement even if the IGBT is still functional.

[CHECK PRICE & AVAILABILITY FOR 5SXE10-0181]

Why Replace These Components Together?

In a power stack failure, a fault in one component often causes collateral damage to others.

• A failed IGBT can send a voltage spike back to the driver board, destroying its components.

• A faulty driver board can cause incorrect switching, leading to IGBT overcurrent and failure.

• Aging capacitors can cause voltage ripple, increasing stress on the IGBTs and leading to premature failure.

Expert Recommendation: For a reliable and long-lasting repair, we highly recommend inspecting and often replacing the IGBT, its corresponding driver board, and the associated capacitors as a set.

Compatible Systems & Drive Models

These components are typically found in:

• ABB ACS 1000 Medium Voltage Drives

• ABB ACS 5000 Medium Voltage Drives

• Other custom ABB power stack configurations.

Disclaimer: Compatibility must be verified based on your specific drive's serial number and build code. Our technical team can assist with this.

Frequently Asked Questions (FAQ)

Q: Can I buy just the IGBT module without the driver board?
A: Yes, each component can be purchased individually. However, we strongly advise against installing a new IGBT on an old driver board (or vice versa) without thorough testing, due to the high risk of immediate failure.

Q: Are these components new and genuine?
A: Yes. We source all parts directly from authorized ABB channels or trusted partners. All parts are 100% genuine and new, not refurbished or recycled.

Q: My drive is down. How quickly can you ship?
A: We understand the urgency of industrial downtime. We offer express shipping options (DHL, FedEx). Contact us for the fastest possible delivery timeline.

Q: Do you offer technical support for installation?
A: We provide basic installation guidance and compatibility checking. For full commissioning and detailed electrical installation, we recommend consulting a certified ABB field engineer.

Get Your Complete Repair Solution Today

Minimize your drive downtime with a guaranteed-compatible, genuine ABB solution.

Our experts are ready to help you verify compatibility and get you the right parts, fast.
