Overview & Key Features

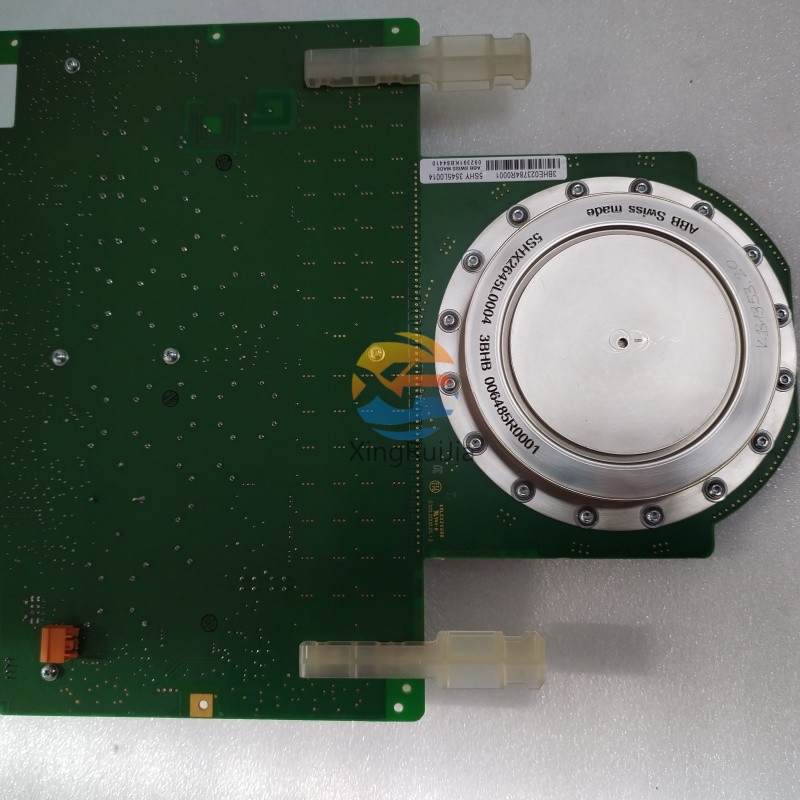

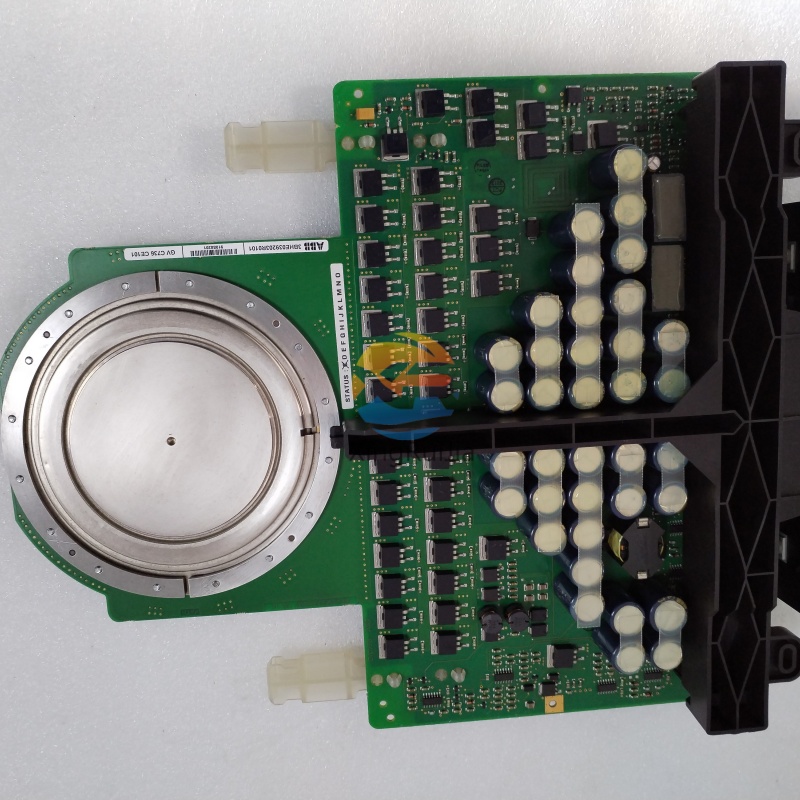

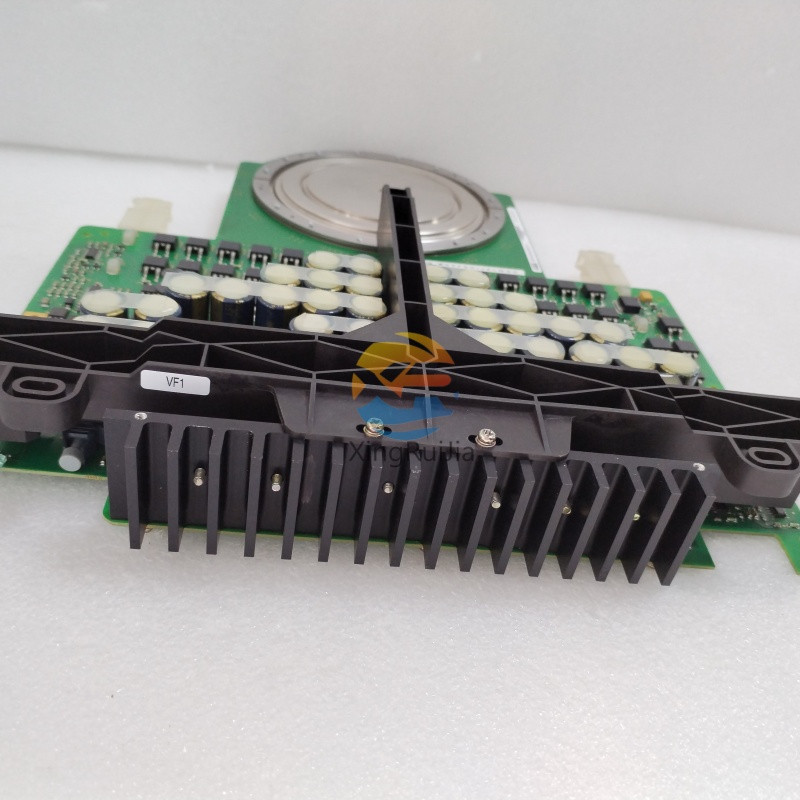

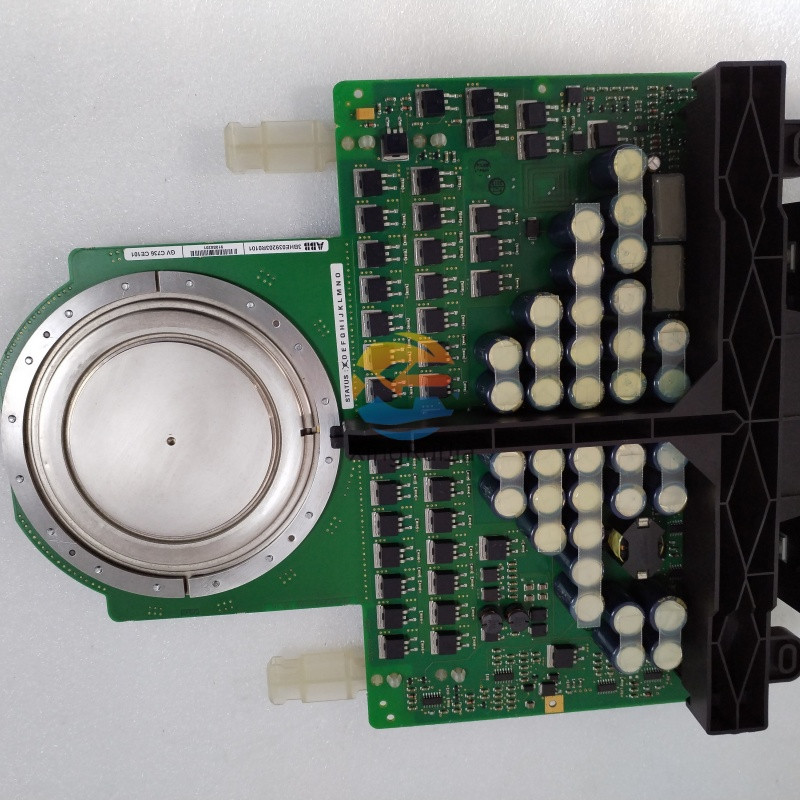

The ABB 5SHY3545L0014 is a high-performance, industrial-grade HiPak IGBT module from ABB's renowned power semiconductor lineup. Engineered for robustness and efficiency, this module is designed for high-power conversion applications where reliability is non-negotiable.

This 3300V, 1200A module is a fundamental building block in systems requiring precise control of large amounts of electrical energy. Its press-pack technology offers superior thermal cycling capability and low stray inductance, making it ideal for the most demanding industrial environments.

Key Advantages at a Glance:

• High Power Density: 3300V collector-emitter voltage and 1200A current rating for compact, powerful designs.

• Robust Press-Pack Design: Unlike traditional modules, it offers a low-inductance path and double-sided cooling for enhanced thermal performance and longer service life.

• High Reliability: Built for rigorous industrial use, ensuring minimal downtime and maintenance costs.

• Industry-Standard Compatibility: A direct replacement part for numerous high-power converters and inverters.

Typical Applications

The 5SHY3545L0014 is critical in sectors that demand high-power switching:

• Industrial Motor Drives: For controlling large AC motors in mining, milling, and pumping applications.

• Renewable Energy Systems: In the central inverters of large-scale solar farms and wind turbines.

• Traction & Rail: Propulsion and auxiliary power converters for locomotives, trams, and metros.

• Power Transmission: Used in HVDC (High-Voltage Direct Current) and FACTS (Flexible AC Transmission Systems) like STATCOMs.

• High-Power UPS Systems: Ensuring clean and continuous power for data centers and critical industrial facilities.

Why Choose a Genuine ABB 5SHY3545L0014?

 Performance Guarantee: Only genuine ABB modules are tested to deliver the exact electrical and thermal performance specified in the datasheet. Counterfeit parts can fail catastrophically.

 System Safety & Longevity: Authentic modules ensure the safety and integrity of your entire system, protecting expensive connected equipment from damage due to component failure.

 Full Technical Support: Access official ABB application notes, simulators, and support documents only available for genuine products.

 Global Traceability: Every module comes with original ABB packaging and a traceable lot number.

Compatible Systems & Replacement Parts

This module is often used as a direct replacement in existing ABB-designed equipment. It is compatible with systems designed for the HiPak series. Please consult your system's manual or contact our technical team to confirm compatibility with your specific converter or inverter model.

Frequently Asked Questions (FAQ)

Q: Is this a brand new, genuine ABB product?
A: Yes. We are an authorized distributor or trusted supplier of ABB semiconductors. All our parts are 100% genuine, new, and come with a full warranty.

Q: Do you offer technical support for integrating this module?
A: Absolutely. Our team of engineers can provide basic integration support and direct you to ABB's extensive technical resources for this product.

Q: What is the lead time for this item?
A: We strive to ship most orders within 1-3 business days. For very large orders, please use the "Request Quote" button for a precise timeline.

Q: Can you provide a certificate of authenticity?
A: Yes, upon request, we can provide all necessary documentation to prove the authenticity and origin of the product.

Order Your ABB 5SHY3545L0014 Today

Ensure the reliability and power of your industrial systems with the authentic ABB HiPak module.

For high-volume projects or to discuss your specific requirements, our experts are ready to help.
