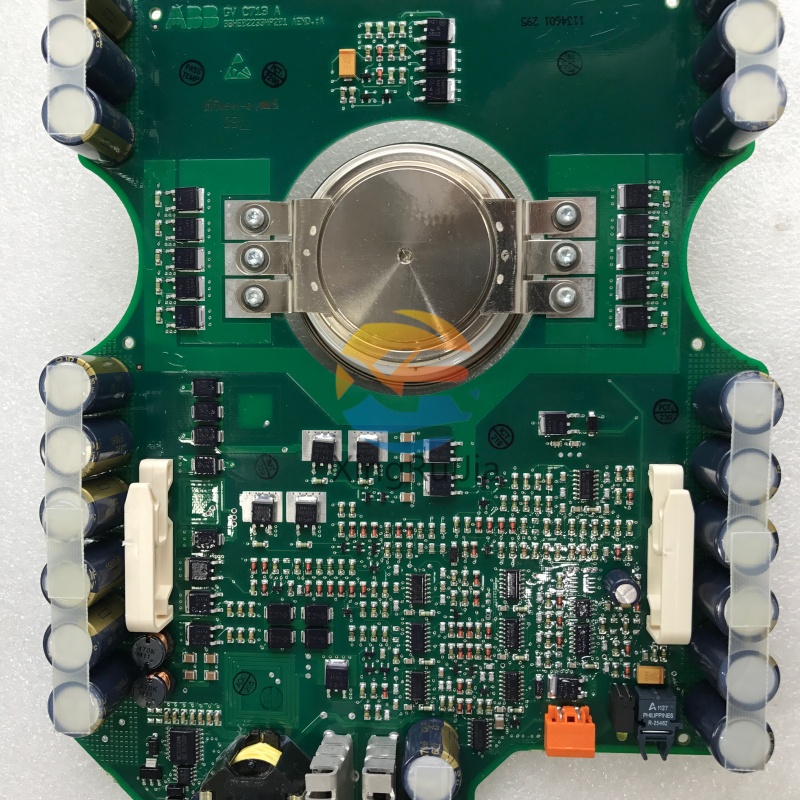

ABB 5SHX0660F0002 IGCT Power Semiconductor

The ABB 5SHX0660F0002 is a high-performance Integrated Gate-Commutated Thyristor (IGCT), a key power switching device designed for efficiency and robustness in medium-voltage applications. As a core component in advanced power electronic converters like those in the ABB ACS1000 drive series, it offers superior reliability and performance for controlling high-power industrial machinery.

This page provides a detailed technical overview of the 5SHX0660F0002, its specifications, and its critical role in modern industrial systems.

1. Product Overview & Core Functionality

The 5SHX0660F0002 is not a standard IGBT but an IGCT. This technology represents a significant advancement in high-power switching, combining the low conduction loss of a thyristor with the fast switching capability of a transistor. It acts as a very efficient and robust electronic switch in medium-voltage converters.

• Product Type: Asymmetric Integrated Gate-Commutated Thyristor (IGCT)

• Core Function: High-power, high-frequency switching in voltage source inverters for medium-voltage drives.

• Key Application: Primarily used as a critical component in ABB ACS1000 and other medium-voltage drive systems.

• Technology: Advanced IGCT platform, known for its very low conduction losses and high reliability.



2. Key Technical Specifications & Parameters

The 5SHX0660F0002 is characterized by its high current and voltage ratings, making it suitable for megawatt-scale applications.

3. Primary Applications & Use Cases

This IGCT is deployed in industries where maximum efficiency, power density, and uptime are critical.

• Industrial AC Drives: A fundamental component in the power stacks of ABB ACS1000 series medium-voltage drives.

• High-Power Applications: Ideal for large pumps, fans, compressors, and rolling mills in sectors like metals, mining, cement, and oil & gas.

• Energy Infrastructure: Used in specialized applications like static VAR compensators (SVCs) and large UPS systems.

• Marine & Propulsion: Employed in the drive systems for large vessels and industrial propulsion.

4. Design Features & Engineering Advantages

The IGCT technology incorporates several distinct advantages over other power semiconductor devices.

• Low Conduction Losses: The thyristor-based structure provides minimal voltage drop when conducting, leading to higher system efficiency, especially at high power levels.

• Robustness: The IGCT is known for its high short-circuit withstand capability and ruggedness, ensuring operation in tough electrical environments.

• Simple Gate Drive: Compared to similar-power IGBTs, the IGCT uses a simple, low-energy gate unit, simplifying the overall drive design.

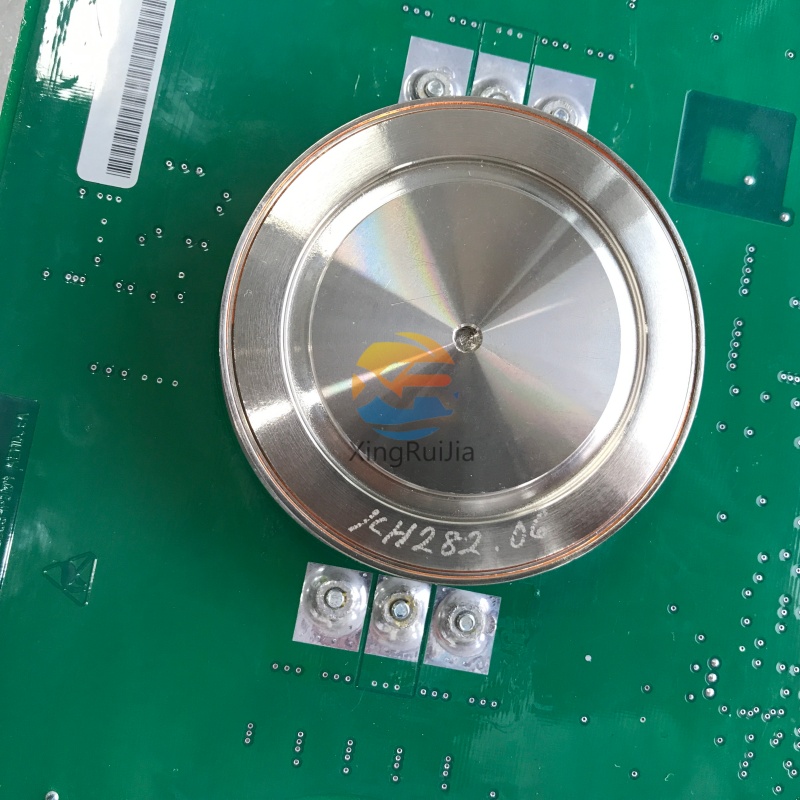

• Press-Pack Housing: Similar to high-power IGBTs, it uses a press-pack design for double-side cooling, excellent thermal cycling performance, and non-destructive failure modes.

5. Benefits & Value Proposition

Choosing the genuine ABB 5SHX0660F0002 IGCT delivers significant operational and economic benefits.

• Unmatched Efficiency: Extremely low conduction losses translate directly into reduced energy consumption and lower operating costs for high-power applications.

• Maximum System Uptime: High inherent robustness and reliability minimize the risk of unplanned downtime in continuous process industries.

• High Power Density: The combination of high current rating and efficient switching allows for more compact converter designs.

• Long Service Life: Designed and manufactured for long-term reliability in demanding conditions, protecting your capital investment.

6. Compatibility, Replacement & Support

Correct handling and installation are paramount for this high-value component.

• System-Specific Component: This IGCT is designed for specific converter topologies, primarily within ABB's own drive systems like the ACS1000. It is not a universal replacement part.

• Genuine ABB Part: Using an authentic ABB 5SHX0660F0002 is critical for ensuring the specified performance, safety, and longevity of the power converter.

• Expert Installation Required: Replacement must be performed by qualified, trained personnel familiar with the specific drive system and high-voltage safety procedures. Proper mounting pressure and cooling system checks are essential.

• Technical Documentation: ABB provides comprehensive datasheets and application notes to support the correct use and maintenance of this device.
