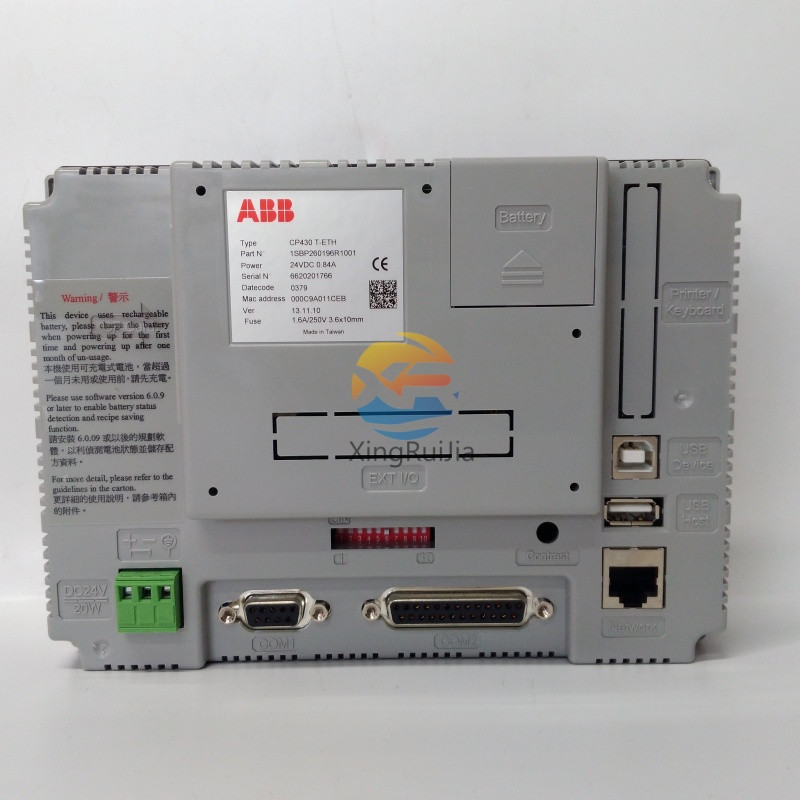

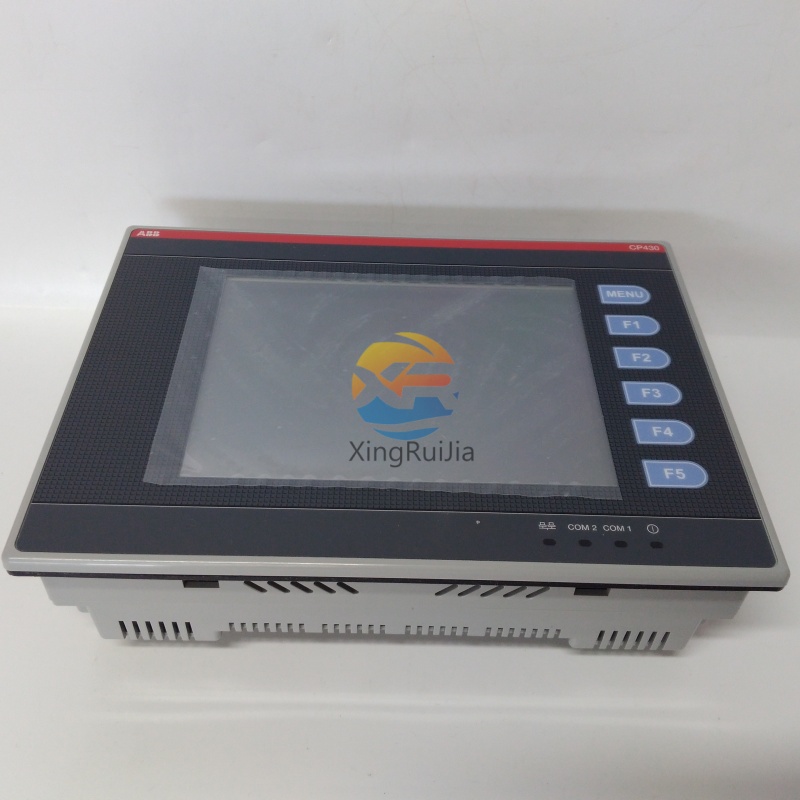

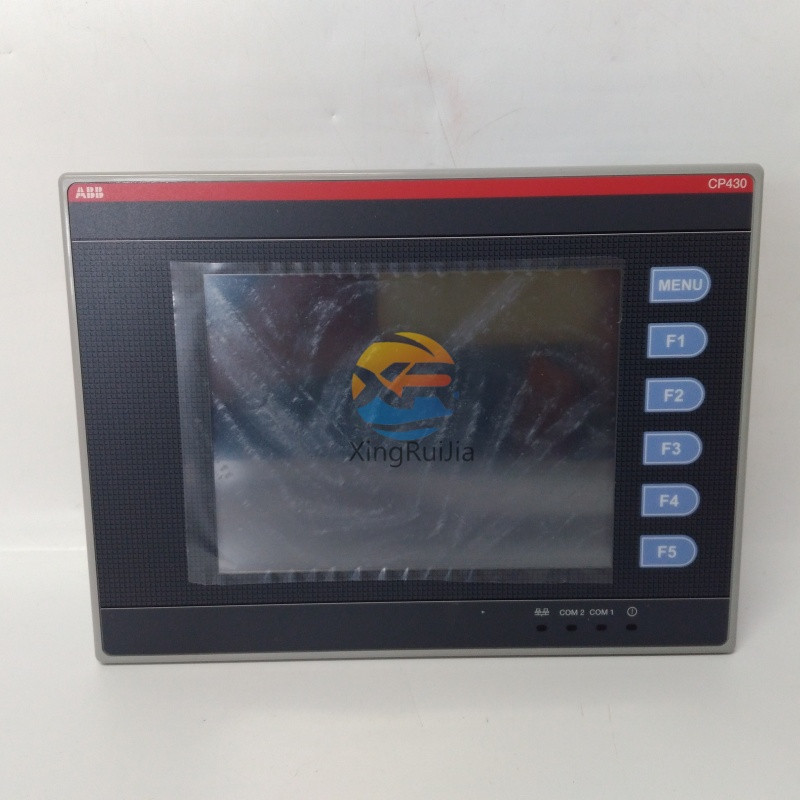

ABB CP430T-ETH Operator Panel | P/N: 1SBP260196R1001

[Download Datasheet (PDF)] [Request a Quote] [Check Availability]

The ABB CP430T-ETH (Order Code: 1SBP260196R1001) is a compact and robust 4.3-inch HMI (Human-Machine Interface) operator panel designed for seamless integration with ABB's AC500 PLC series. Featuring a resistive touchscreen and built-in Ethernet connectivity, this panel provides a user-friendly interface for machine control, data visualization, and parameter setting in a wide range of industrial automation environments.

Its rugged design ensures reliable operation in demanding conditions, making it the perfect cost-effective solution for replacing traditional buttons and indicators with a dynamic, digital interface.

Key Features & Benefits:

• Compact 4.3" TFT Display: Bright, clear visualization for essential machine data and controls in a space-saving design.

• Resistive Touchscreen: Allows operation with gloves or a stylus, ideal for industrial environments.

• Integrated Ethernet Port (ETH): Enables fast, easy connection to ABB AC500 PLCs (e.g., PM5xx CPUs) and simplifies integration into your plant network.

• Rugged Industrial Design: Built to withstand typical industrial challenges like dust, moisture, and electromagnetic interference.

• Powerful Configuration Software: Easily create custom control screens using ABB's Automation Builder or Control Builder Plus software.

• Cost-Effective HMI Solution: Provides a modern touch interface at an attractive price point for simple to medium-complexity applications.

Technical Specifications: ABB CP430T-ETH (1SBP260196R1001)

Common Applications & Industries

The ABB CP430T-ETH operator panel is used across numerous sectors for machine interaction and monitoring:

• Factory Automation: Machine control, conveyor system status, and production counter displays.

• Building Automation: HVAC control system interfaces.

• Water & Wastewater Treatment: Pump control and tank level monitoring.

• Packaging Machinery: Setting parameters and displaying machine status.

• Material Handling: Simple control and fault diagnosis for cranes and hoists.

Frequently Asked Questions (FAQs)

Q: What does the "ETH" in the model name stand for?
A: "ETH" indicates that the panel has a built-in Ethernet port for network communication, which is the primary way it connects to compatible PLCs like the ABB AC500 series.

Q: Can the CP430T-ETH communicate with Siemens/Schneider/Allen-Bradley PLCs?
A: Its native integration is with ABB's AC500 PLCs. Communication with other PLC brands may be possible using generic protocols (like Modbus TCP), but it can be complex and may require advanced configuration. It is primarily designed for the ABB ecosystem.

Q: What software is used to program this HMI?
A: You use ABB's Automation Builder or Control Builder Plus software to create and design the screen layouts and then download them to the panel.

Q: Is this a direct replacement for the CP430T (without Ethernet)?
A: Physically, yes. However, the communication method is different. The CP430T-ETH uses Ethernet, while the older CP430T may have used a serial port (e.g., RS485). You must ensure your PLC and program are configured for Ethernet communication.

Q: Do you offer technical support for programming this HMI?
A: We provide access to all official ABB documentation and manuals. For in-depth programming support, we recommend contacting a certified ABB system integrator.

Why Source Your ABB Components from Us?

• Authorized & Trusted Supplier: We are a reliable source for genuine ABB automation products, ensuring full compatibility and performance.

• Global Shipping: We ship to OEMs, system integrators, and end-users across North America and Europe with fast, reliable logistics.

• Technical Expertise: Our team understands industrial automation and can help you verify compatibility for your specific application.

• Secure Supply Chain: We guarantee that all parts are 100% authentic and new, sourced directly from authorized channels.
