Introduction to the ABB SC520 3BSE003816R1

The ABB SC520, with the ordering number 3BSE003816R1, is a critical SMB (Shared Memory Board) module designed for ABB's Advant® OCS (Open Control System) and Master family of automation systems. This board served as a high-performance, centralized communication and data sharing hub within these powerful distributed control systems (DCS). While part of a legacy platform, the SC520 remains a vital component for maintaining operational continuity in countless industrial plants worldwide. Understanding its function and sourcing reliable replacements is essential for engineers and maintenance teams in industries with long-lifecycle automation assets.

Technical Specifications and Key Features

The SC520 SMB board was engineered for robust, real-time data handling in a multi-processor station environment.

• Manufacturer: ABB

• Ordering Number: 3BSE003816R1

• Product Designation: SC520

• Module Type: Shared Memory Board (SMB)

• Compatibility: Designed for use in the Advant Station Platform (e.g., AS410, AS420, AS500) within the Advant OCS and Master Piece 200/2001 DCS.

• Primary Function: To provide a high-speed, shared memory space for multiple processors (CPs) within a control station. This enabled:

  • Inter-Processor Communication: Allowing different CPUs to exchange data and synchronize actions efficiently without cumbersome network traffic.

  • Centralized Data Access: Providing a common area for global station data, ensuring consistency and fast access for all connected processors.

  • System Coordination: Facilitating coordinated function between processors handling different tasks like continuous control, logic, and calculations.

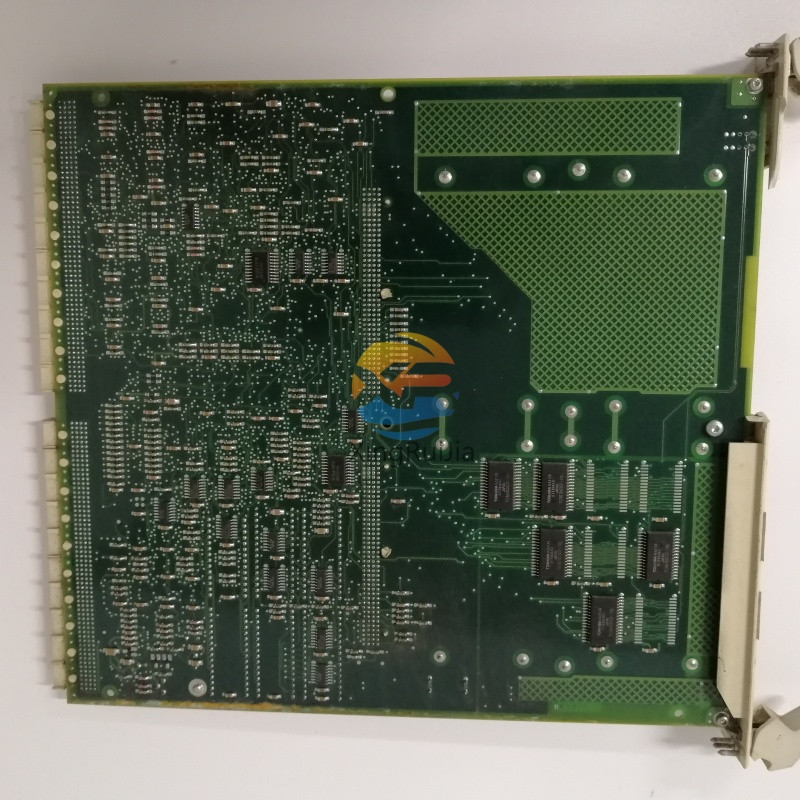

• Design: A robust printed circuit board (PCB) designed for installation in a dedicated slot within the Advant station rack. It features its own microprocessor and memory chips to manage data access and integrity.

• Redundancy: Could often be configured in redundant pairs to ensure fault-tolerant operation, a critical feature for continuous process control.

Primary Applications and Use Cases

The SC520 was deployed in large-scale, mission-critical industrial processes where the Advant OCS was the platform of choice.

• Process Automation: Served as the backbone for data exchange within DCS controller stations in industries such as:

  • Oil & Gas: Refineries, offshore platforms, and pipeline control.

  • Chemicals & Petrochemicals: Managing complex continuous and batch processes.

  • Pulp & Paper: Controlling entire paper machines and chemical recovery islands.

  • Power Generation: Boiler and turbine control systems.

• Legacy System Maintenance: Today, its primary application is the maintenance, repair, and lifecycle extension of existing Advant OCS installations that are still in reliable operation.

Compatibility and Importance of Genuine Parts

This module is specific to a closed architecture system and is not interchangeable with other platforms.

• System-Specific Design: The SC520 3BSE003816R1 is designed exclusively for the Advant Station hardware and software environment. Its operation is tightly integrated with the station's operating system and other processors.

• Critical Spare Part: For operating Advant systems, this board is a high-priority spare. Its failure can halt an entire control station, leading to a significant process shutdown.

• Why Quality Matters: Sourcing a reliable replacement is paramount.

  • Performance & Reliability: The board must handle high-speed data access without errors. Refurbished boards from reputable suppliers should be rigorously tested.

  • Perfect Compatibility: Must be the exact hardware and firmware revision to ensure seamless integration into the existing station.

  • Technical Support: Suppliers with expertise in legacy ABB systems can provide crucial support during replacement.

Identifying Need for Replacement and Sourcing

Failure of an SMB board is a significant event requiring careful diagnosis.

• Symptoms of Failure: Complete failure of a control station, loss of communication between processors, consistent memory parity errors logged in system diagnostics, or failure to pass built-in self-tests during station startup.

• Professional Diagnosis: Troubleshooting should be performed by technicians familiar with the Advant OCS platform, using system error logs and diagnostic tools.

• Sourcing a Replacement: Due to its legacy status, the SC520 (3BSE003816R1) is no longer supplied new by ABB. It must be sourced through specialized distributors of legacy industrial automation parts.

  • Verification: Provide the full part number and your station's model number (e.g., AS410) when sourcing.

  • Quality Assurance: Choose a supplier that offers tested, guaranteed, and refurbished units with a warranty. Beware of untested "as-is" parts.



Conclusion

The ABB SC520 3BSE003816R1 SMB Board is a testament to the longevity and reliability of ABB's Advant OCS platform. While legacy technology, it remains the vital heart of data exchange for many critical industrial processes still in operation today. For plant owners, maintaining a stock of proven, tested spare parts like the SC520 or knowing where to source them quickly is a key strategy for minimizing downtime and extending the service life of a trusted automation investment.
