Introduction to the ABB RED615 Protection Relay

The ABB RED615 is a advanced numerical protection relay designed for the protection, control, measurement, and supervision of utility and industrial distribution networks. As a key member of ABB's Relion® product family and part of the 615 series, it is specifically engineered for feeder protection applications. This IEC 61850-compliant device represents the cutting edge in power system protection, integrating multiple functions into a single, compact unit to enhance grid reliability, simplify substation design, and reduce operational costs. It is an essential component for protection engineers, system integrators, and utility operators managing medium-voltage substations.

Technical Specifications and Key Features

The RED615 combines robust protection features with modern communication capabilities in a user-friendly package.

• Product Family: Relion® 615 series

• Protection Type: Feeder Protection Relay

• Key Protection Functions:

  • Overcurrent Protection (50, 51, 50N/51N, 50G/51G): Definite and inverse time phase and earth-fault protection.

  • Directional Overcurrent Protection (67, 67N): For selective fault clearance in ring and meshed networks.

  • Automatic Reclosing (79): For overhead lines to automatically restore power after transient faults.

  • Breaker Failure Protection (50BF): Initiates backup tripping if the circuit breaker fails to operate.

  • Voltage Protection (27, 59): Under-voltage and over-voltage protection.

• Communication Protocols: Native support for IEC 61850 (Edition 2) for seamless integration into modern digital substations, alongside IEC 60870-5-103/104, Modbus®, and DNP3 for legacy system compatibility.

• Measurement & Monitoring: Provides comprehensive three-phase power, energy, and power quality measurement. Includes extensive disturbance recording (COMTRADE) for event analysis.

• Condition Monitoring: Features for circuit breaker monitoring (contact wear, operating time) and internal self-supervision.

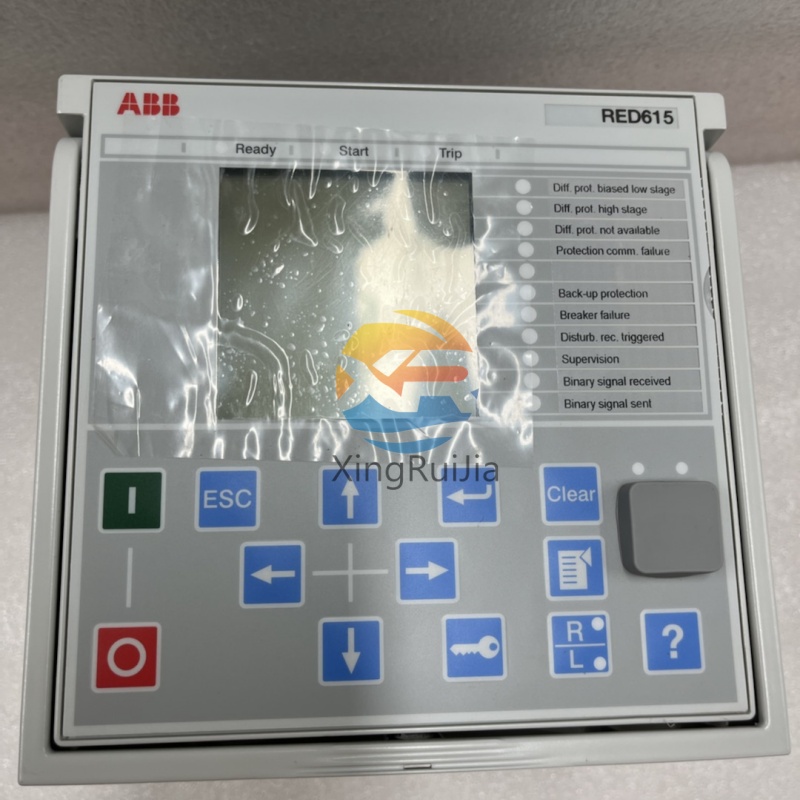

• Human-Machine Interface (HMI): Features a large graphical display, intuitive navigation, and a front-port for easy configuration and commissioning.

Primary Applications and Use Cases

The versatility of the RED615 makes it suitable for a wide range of medium-voltage applications.

• Utility Distribution Substations: Primary protection for incoming and outgoing feeders in distribution substations.

• Industrial Power Systems: Protection of feeders, transformers, and connection points in manufacturing plants, data centers, and large commercial facilities.

• Renewable Energy Integration: Protecting the connection point of solar farms or wind parks to the main grid.

• Railway Electrification: Feeding protection for AC railway power supply systems.

• Ring Main Unit (RMU) Protection: An ideal solution for protecting switchgear in compact secondary distribution systems.

Benefits and Advantages

Choosing the ABB RED615 offers significant operational and economic benefits.

• Enhanced Reliability: Improves grid stability and availability through fast, selective, and reliable fault clearance.

• Reduced Footprint: Integrates multiple protection and control functions into one device, saving panel space and reducing wiring.

• Future-Proof Design: Native IEC 61850 support simplifies integration into digital substations, enabling interoperability and reducing lifecycle costs.

• Ease of Use: PC tools like ABB's PCM600 simplify configuration, setting management, and disturbance analysis, streamlining engineering processes.

• Comprehensive Support: Backed by ABB's global service network, offering application support, training, and long-term product availability.

Compatibility and Integration

The RED615 is designed for seamless integration into both new and existing systems.

• System Compatibility: Can be integrated into ABB's wider substation automation system or operate as a standalone device in any vendor's environment.

• Hardware: Designed for standard panel mounting in switchgear cabinets. Compatible with standard CTs and VTs.

• Software: Configured using PCM600, which provides a unified engineering environment for the entire Relion® product family.

Troubleshooting and Support

While highly reliable, understanding common support needs is crucial.

• Common Inquiries: Issues often relate to configuration settings, communication setup (especially IEC 61850 SCL files), and interpretation of disturbance records.

• Sourcing & Replacement: For replacements, it is critical to source the RED615 and its specific hardware version from authorized ABB distributors or service partners to ensure authenticity and compatibility.

• Professional Services: Commissioning and complex troubleshooting should be performed by qualified protection engineers.

Conclusion

The ABB RED615 is a cornerstone of modern distribution network protection. Its blend of comprehensive protection functions, advanced communication, and user-friendly design makes it a trusted choice for utilities and industries worldwide. By ensuring the selective and rapid isolation of faults, it minimizes outage times and protects valuable electrical assets. For anyone involved in the design, operation, or maintenance of medium-voltage power systems, the RED615 represents a smart, future-proof investment in network reliability and efficiency.
