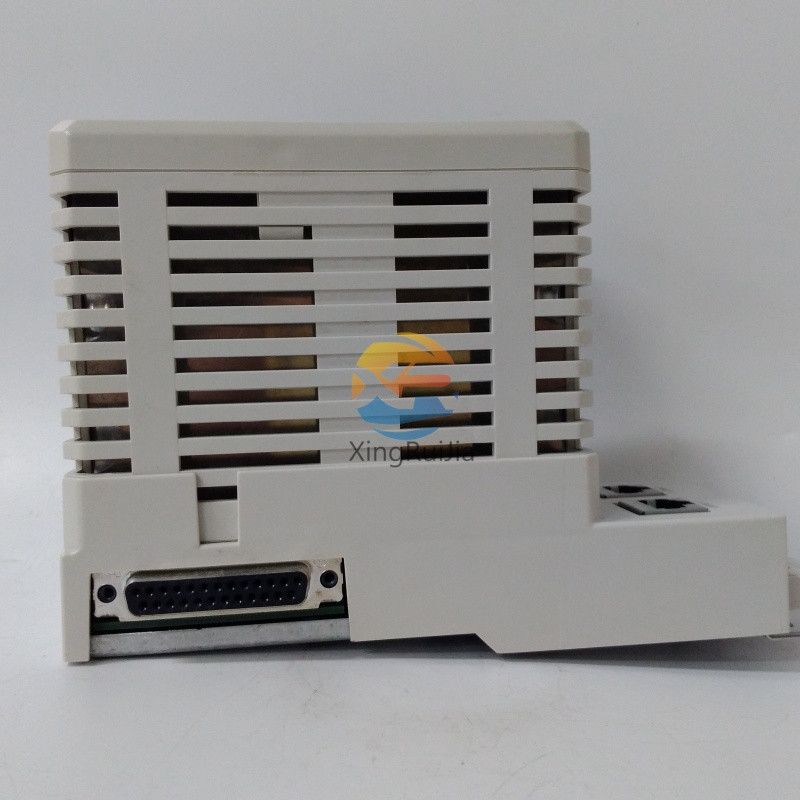

Introduction to the ABB CI857K01 3BSE018144R1 Controller

The ABB CI857K01, with the ordering number 3BSE018144R1, is a high-performance process controller from the renowned AC 800M family. This controller is the core computing engine within ABB's flagship System 800xA automation platform, designed to execute complex control applications with utmost reliability and speed. It is engineered for mission-critical processes in industries where maximum uptime, advanced functionality, and seamless integration are non-negotiable.

As a central component in modern Distributed Control Systems (DCS), the CI857K01 is pivotal for engineers and system integrators building and maintaining automation solutions for large-scale industrial plants, including oil and gas, chemical, power generation, and water treatment facilities.

Technical Specifications and Key Features

The CI857K01 represents the high end of ABB's controller range, packed with features for demanding applications.

• Manufacturer: ABB

• Ordering Number: 3BSE018144R1

• Product Designation: CI857K01

• Controller Family: AC 800M

• Processor: Features a powerful processor for executing large and complex control strategies, including continuous process control, batch logic, and sequencing with minimal scan time.

• Memory: Equipped with substantial volatile and non-volatile memory for storing and running extensive application code.

• Integration: Seamlessly integrates into the System 800xA environment, providing a unified operational and engineering experience for control, safety, and electrical systems.

• Connectivity: Supports a wide array of communication protocols via various communication interfaces (e.g., CI861, CI867, CI871) for connecting to:

  • I/O Systems: ABB's S800 I/O and other fieldbus networks via Profibus DP, Foundation Fieldbus H1, or MODBUS.

  • Networks: Ethernet for plant network connectivity and peer-to-peer communication with other controllers.

• Redundancy: Can be configured in a redundant (hot-standby) pair with another CI857 controller, ensuring fault-tolerant operation with automatic changeover in case of a hardware failure—a critical feature for continuous processes.

• Robust Design: Built for 24/7 operation in industrial environments within a controlled cabinet.

Primary Applications and Use Cases

The power and flexibility of the CI857K01 make it suitable for the most demanding automation tasks.

• Central DCS Control: Acts as the primary process controller in a System 800xA DCS for large plants, running regulatory control loops, complex interlocks, and sequence control.

• Batch Process Management: Ideal for sophisticated batch and recipe-based processes in the pharmaceutical, fine chemical, and food & beverage industries.

• Supervisory Control: Provides high-level supervisory control and coordination for multiple sub-systems or entire production units.

• Key Industries:

  • Oil & Gas: Controlling refinery units, offshore platforms, and pipeline operations.

  • Chemicals: Managing continuous and batch reactors, distillation columns, and utilities.

  • Power: Controlling boiler and balance-of-plant systems in power stations.

  • Pulp & Paper: Managing entire paper machines and chemical recovery islands.

Compatibility and System Integration

The CI857K01 is not a standalone device; it is part of a comprehensive ecosystem.

• System 800xA: This controller is designed to be deeply integrated into the 800xA system, leveraging its extensive libraries, engineering tools, and operator interface features.

• Hardware Compatibility: It is installed in an AC 800M controller base unit (e.g., PU811, PU812) and requires specific power supply and communication modules to function.

• Software: Programmed and configured using ABB's Control Builder M engineering tool, which uses standardized languages like Continuous Function Chart (CFC), Function Block Diagram (FBD), and Structured Text (ST).

• Importance of Genuine ABB: Using an authentic ABB controller is critical for:

  • System Stability: Guaranteed performance and compatibility with all 800xA components.

  • Long-Term Support: Access to firmware updates, security patches, and technical support.

  • Warranty & Reliability: Assurance of quality and longevity for a critical plant asset.

Identifying Need for Replacement and Sourcing

Controller replacement is a significant event, often planned during a plant shutdown.

• Reasons for Replacement: Hardware failure (evident by fault indicators or failure to boot), a planned system upgrade, or expansion requiring additional controller capacity.

• Procurement Considerations: When sourcing a CI857K01, it is imperative to work with authorized ABB distributors.

• Verification: Provide the full part number (3BSE018144R1) and your system's details to ensure compatibility. Be aware of firmware versions, as they may need to match the existing system.

• Professional Services: Replacing a central controller is complex. It involves careful handling, configuration download, and thorough testing. Engaging ABB or a certified system integrator is highly recommended.



Conclusion

The ABB CI857K01 3BSE018144R1 is a cornerstone of modern industrial automation, providing the robust and powerful control needed for the world's most critical processes. Its deep integration with System 800xA makes it more than just a PLC; it is the intelligent heart of a unified automation architecture. For plant engineers and maintenance teams, understanding, correctly specifying, and sourcing this controller from official channels is essential for ensuring plant reliability, safety, and efficiency for years to come.
