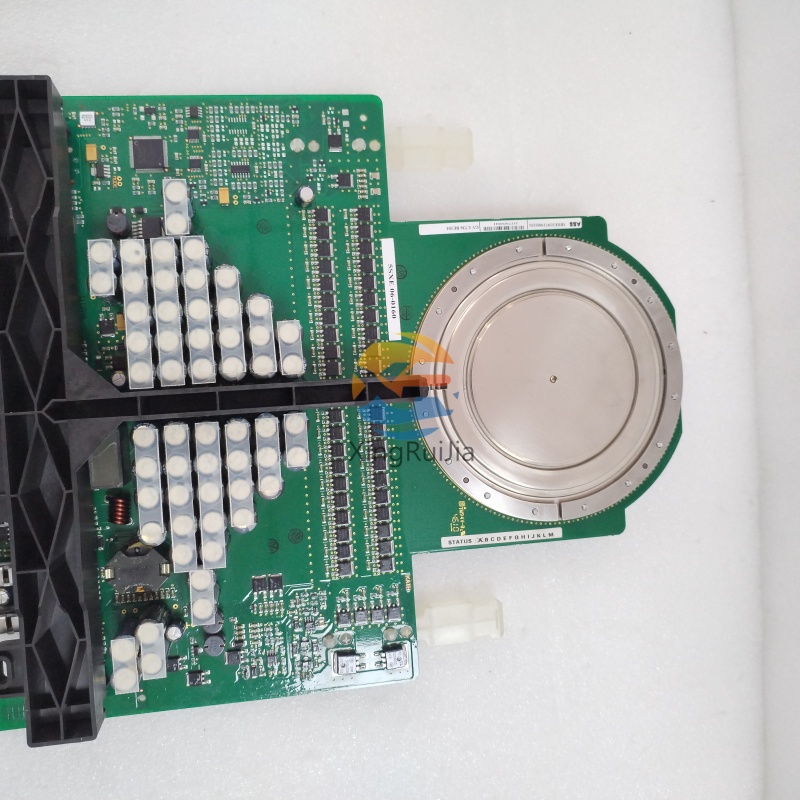

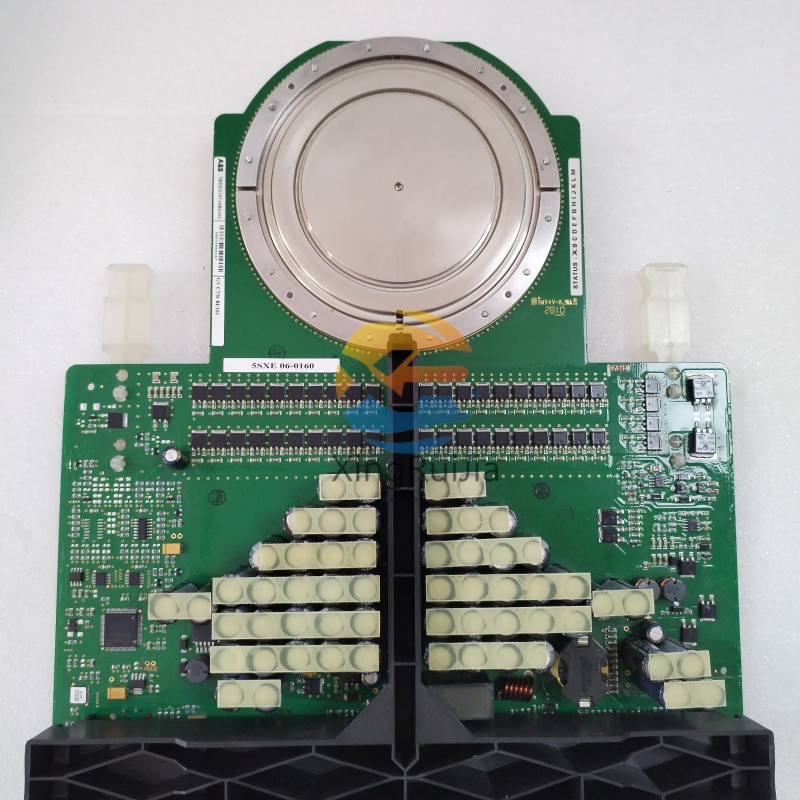

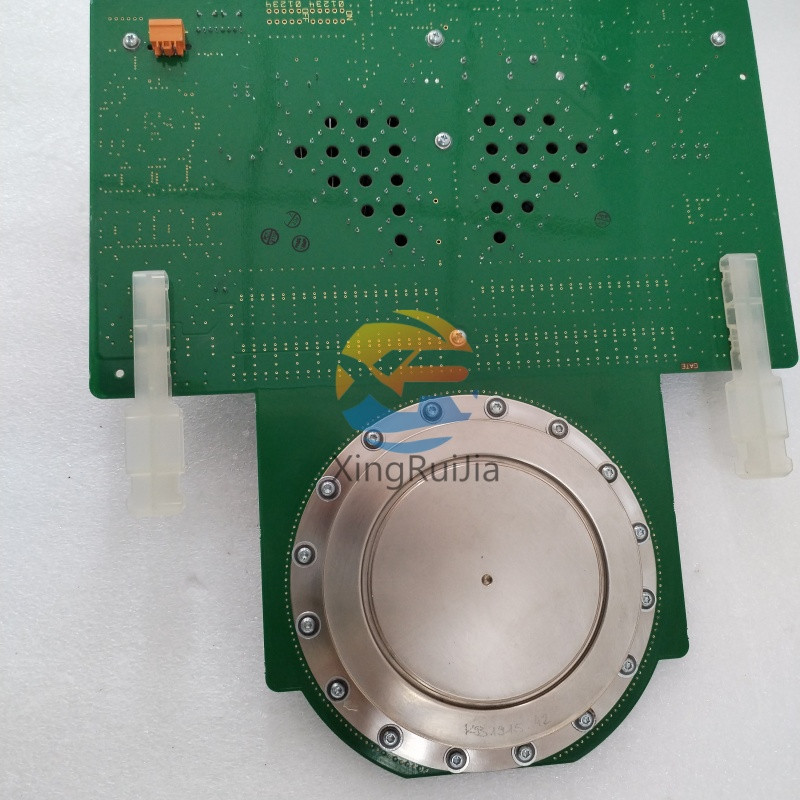

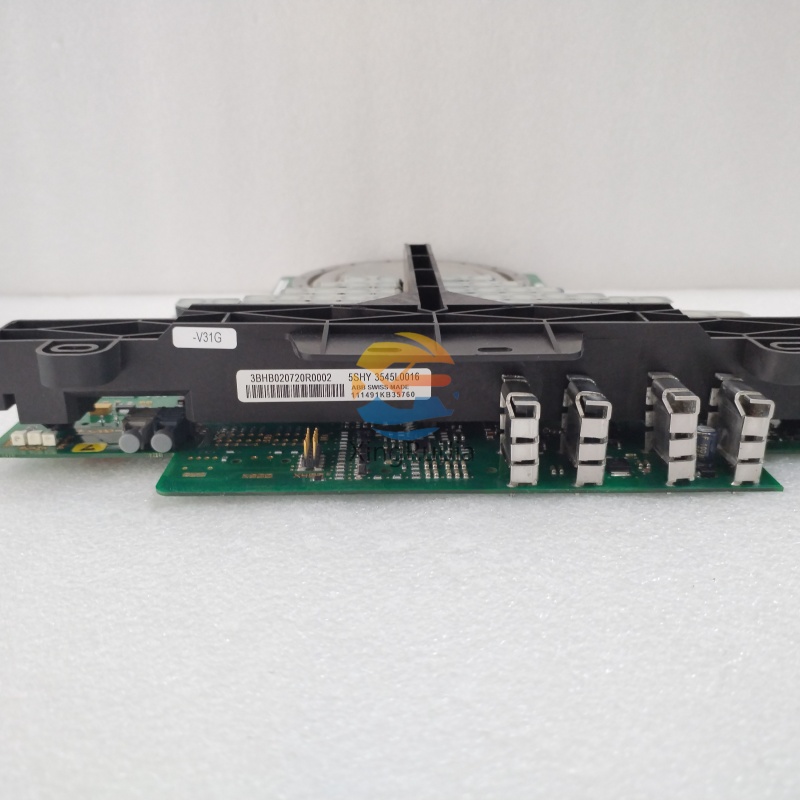

Introduction to the ABB 5SHY3545L0016 IGCT

The ABB 5SHY3545L0016 is a critical high-power semiconductor component, specifically an IGCT (Integrated Gate-Commutated Thyristor). Designed and manufactured by ABB, a global leader in power and automation technologies, this module is an essential building block for robust and efficient medium-voltage power conversion. It is engineered for extreme reliability and performance in the most demanding industrial environments, serving as the heart of variable speed drives and other power electronic systems that control large electric motors.

Understanding the 5SHY3545L0016 is crucial for engineers, technicians, and procurement specialists involved in maintaining high-power AC drives, particularly in industries where operational uptime and power efficiency are paramount.

Technical Specifications and Key Features

The 5SHY3545L0016 represents the pinnacle of power semiconductor technology, offering superior characteristics for high-voltage, high-current applications.

• Manufacturer: ABB

• Ordering Number / Article Code: 5SHY3545L0016

• Component Type: IGCT (Integrated Gate-Commutated Thyristor)

• Key Electrical Characteristics:

  • Blocking Voltage: Designed for medium-voltage applications, typically in the range of several kilovolts (e.g., 4.5kV, 5.5kV, or 6.5kV classes).

  • Current Rating: Capable of handling very high continuous and surge currents, often in the thousands of amperes.

  • Switching Performance: The IGCT combines the low conduction loss of a thyristor with the hard-driven switching capability of a transistor, leading to high efficiency and reduced switching losses.

• Integrated Design: Unlike traditional thyristor stacks, the IGCT is a compact, integrated unit that includes the gate drive circuitry, simplifying system design and improving reliability.

• Robust Construction: Built to withstand the high thermal and electrical stresses encountered in power conversion applications.

• Primary Function: Acts as a fully controllable switch, turning power on and off to synthesize the AC waveform required to control the speed and torque of a large electric motor.

Primary Applications and Use Cases

The 5SHY3545L0016 IGCT is deployed in high-power electronic systems where performance and reliability are non-negotiable.

• Medium-Voltage AC Drives: This is its primary application. It is a key component in ABB's ACS1000 series of medium-voltage, variable frequency drives (VFDs) and likely other high-power drive families.

• Industrial Processes: These drives are used to control large motors (e.g., pumps, fans, compressors, conveyors) in key industries such as:

  • Oil & Gas: For pipeline compressors and pumping stations.

  • Power Generation: For boiler feed pumps and induced draft fans.

  • Mining & Minerals: For grinding mills, crushers, and conveyors.

  • Water & Wastewater: For high-power pumping applications.

• Custom Power Conversion: May also be used in specialized industrial power supplies, renewable energy interconnections, and other high-power conversion equipment.

Compatibility and System Integration

The 5SHY3545L0016 is not a standalone device; it is a core component within a larger power electronics system.

• Drive Compatibility: It is specifically designed for integration into ABB's medium-voltage drive platforms. Its electrical and mechanical characteristics are matched to the drive's power stack design.

• Replacement Part: This specific part number is often sought as a critical spare part for maintenance and repair operations. A failure of this component will typically cause a drive shutdown.

• Importance of Genuine ABB Parts: Using an authentic, factory-original IGCT is absolutely essential. High-power semiconductors must meet exacting standards for:

  • Performance and Safety: Guaranteed voltage and current ratings are critical for system safety and longevity.

  • Thermal Performance: Proper heat dissipation is vital; counterfeit or inferior parts can overheat and fail catastrophically.

  • System Integrity: Only genuine ABB parts ensure perfect mechanical fit, electrical characteristics, and compatibility with the drive's control and protection systems.

Identifying the Need for Replacement and Sourcing

Failure of an IGCT is a significant event that requires careful diagnosis and replacement.

• Symptoms of Failure: A failed 5SHY3545L0016 will typically cause a major drive fault, such as an overcurrent, short-circuit, or earth fault alarm. The drive will trip and be unable to start.

• Professional Diagnosis: Replacement should only be undertaken after a thorough diagnostic process by qualified personnel to confirm the IGCT is the root cause and to check for any collateral damage (e.g., to snubber circuits, gate units, or fuses).

• Sourcing a Replacement: Due to its high value and critical nature, the 5SHY3545L0016 must be sourced exclusively through official ABB channels or authorized ABB distributors. This is the only way to ensure authenticity, reliability, and support.

• Installation Note: Installation is a complex procedure for trained specialists, often involving specific torque settings for contacts, application of thermal interface materials, and connection of auxiliary components.


Conclusion

The ABB 5SHY3545L0016 IGCT is more than just a spare part; it is a high-precision, high-power engine that enables some of the world's most critical industrial processes. Its role in converting and controlling electrical power in medium-voltage drives is fundamental to global industry. For maintenance and engineering teams, accurately identifying, sourcing genuine replacements, and correctly installing this component is key to minimizing costly downtime and ensuring the continued safe and efficient operation of high-power drive systems.
