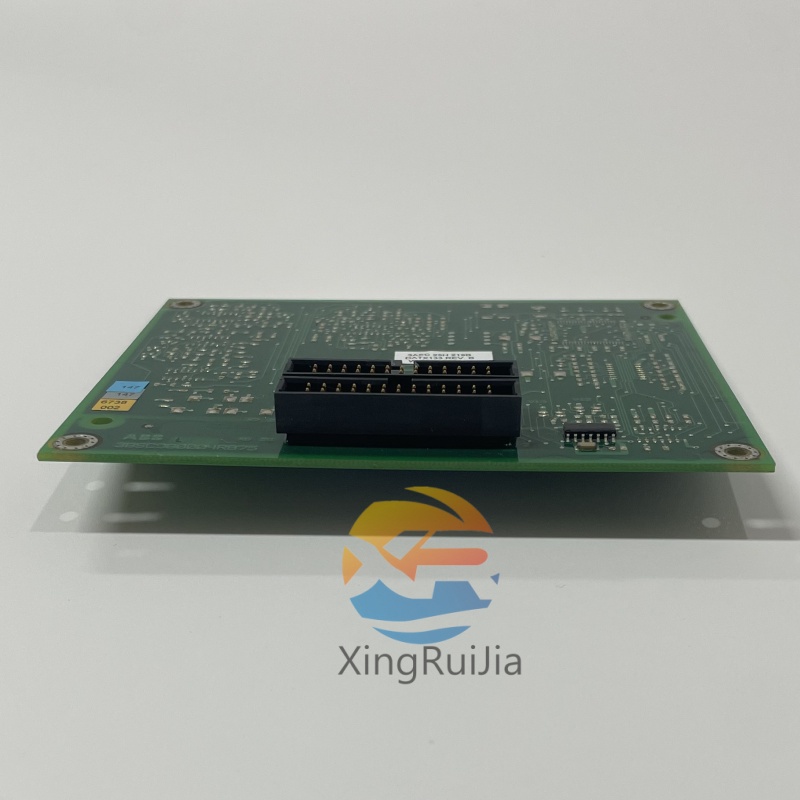

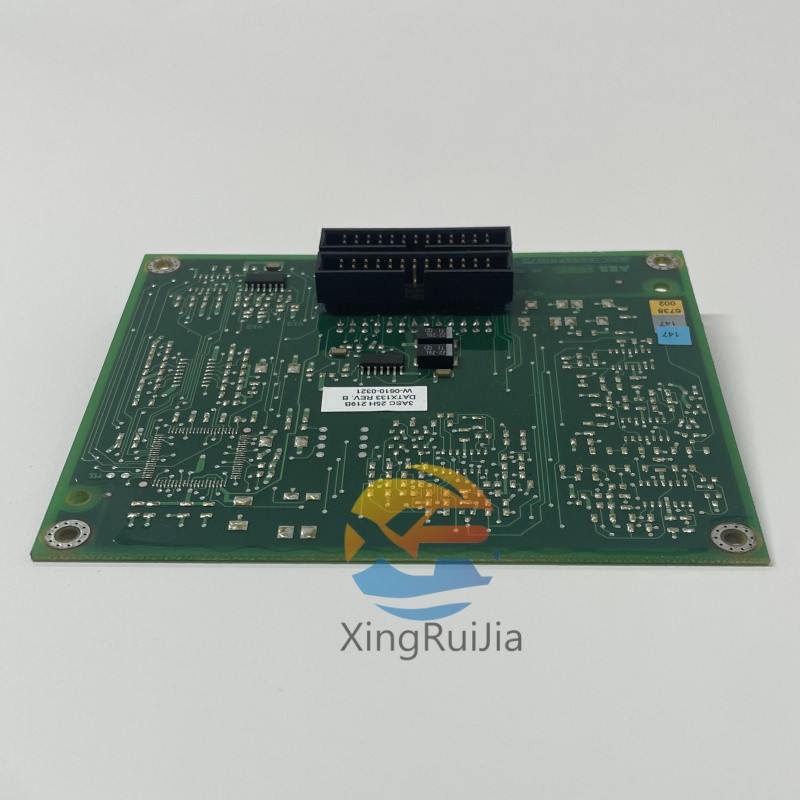

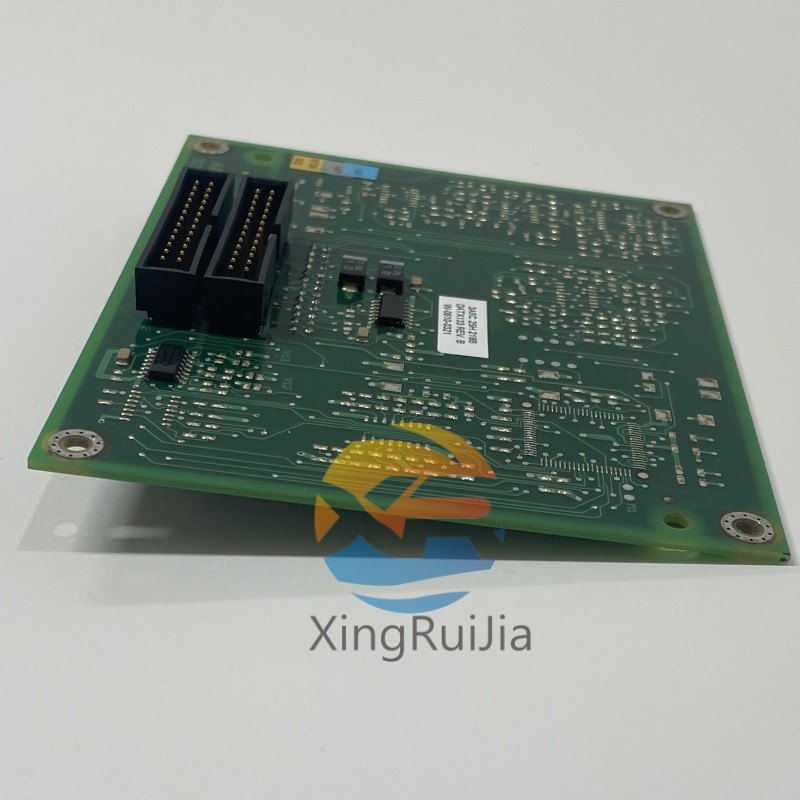

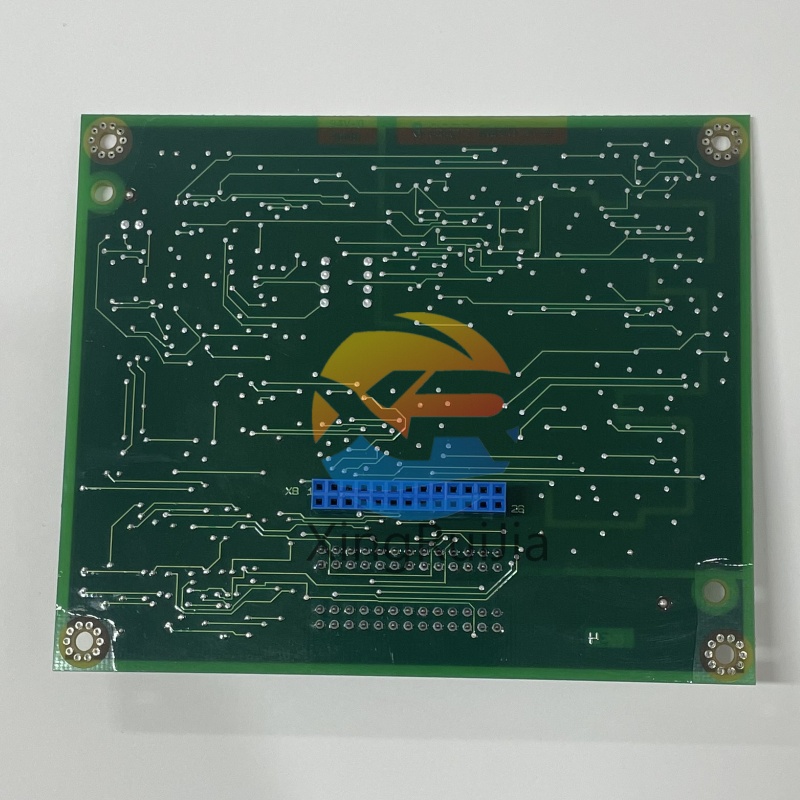

Introduction to the ABB 3ASC25H219B DATX133 Module

The ABB 3ASC25H219B, with the product code DATX133, is a Digital I/O Extension Module designed exclusively for the ABB ACS800 series of industrial AC drives. This module is a critical component for system integrators and engineers who need to expand the control and monitoring capabilities of their drive beyond the standard built-in inputs and outputs.

In complex automation environments, drives often need to communicate with numerous sensors, programmable logic controllers (PLCs), and other peripheral devices. The DATX133 module provides the essential extra digital channels to facilitate this, making it a key enabler for advanced and customized drive functionality in applications from material handling to process control.

Technical Specifications and Key Features

The ABB 3ASC25H219B DATX133 module is engineered for robustness and seamless integration within the ACS800 architecture.

• Manufacturer: ABB

• Ordering Number / Article Code: 3ASC25H219B

• Product Type Designation: DATX133

• Module Type: Digital Input/Output (I/O) Extension Module

• Compatibility: Designed for integration with the ABB ACS800 drive family. It is typically installed on the drive's internal board (RDC I/O socket) to extend its capabilities.

• Primary Function: To provide additional digital input and output channels for the ACS800 drive.

• Typical I/O Configuration: The module commonly offers:

  • Digital Inputs (DIs): Additional configurable digital inputs for receiving signals from devices like push buttons, sensors, or switches (e.g., for start/stop, jog, or preset speed selection).

  • Digital Outputs (DOs): Additional configurable digital outputs for sending signals from the drive to external devices (e.g., relay coils, indicator lamps, or PLC inputs to signal "Drive Ready" or "Fault" status).

• Isolation: Features optical isolation to protect the drive's main circuitry from electrical noise, surges, and ground loops, which is critical for reliable operation in harsh industrial environments.

• Configuration: The inputs and outputs are easily configured using ABB's dedicated drive tuning and configuration software, such as DriveWindow® or the later ABB Ability™ Drive Composer, allowing for flexible adaptation to specific application needs.

Primary Applications and Use Cases

The DATX133 module is deployed in scenarios where the standard I/O of an ACS800 drive is insufficient. Its applications are vast across industrial automation:

• Enhanced Control Logic: Allows for more complex interlocking and control sequences directly linked to the drive without requiring an external PLC for every function.

• Multi-Speed Control: Provides the necessary digital inputs to select from multiple preset speeds configured within the drive parameters.

• Status Monitoring and Indication: Enables connection of multiple status lamps or horns for local indication of drive state (Run, Fault, At Speed, etc.).

• Safety Interfacing: Can be used to interface with additional safety devices or manual override stations.

• Material Handling Systems: Widely used in conveyor systems, palletizers, and packaging machines where coordination with external sensors and actuators is required.

• Water and Wastewater Treatment: For controlling pumps and fans that require multiple control signals and status feedback.

Compatibility and Integration with ACS800 Drives

The 3ASC25H219B DATX133 module is not a universal component. Its design is specific to the ACS800 drive platform.

• System Integration: It plugs directly into the designated slot on the ACS800 drive's control board, making installation straightforward and eliminating the need for complex external wiring.

• Seamless Operation: Once installed and configured, the drive's firmware recognizes the module, and its I/O points become available for programming within the drive's parameter list.

• Importance of Genuine ABB Parts: Using an authentic ABB module is crucial. It guarantees:

  • Perfect Compatibility and Fit.

  • Reliable performance matched to the drive's operational lifecycle.

  • Full functionality with no risk of firmware conflicts.

  • Safety and EMC compliance as per original design standards.

Identifying the Need for Replacement and Sourcing

A faulty I/O module can lead to unexplained drive faults or loss of control signals.

• Symptoms of a Faulty Module: Unexplained digital I/O failures, error codes related to I/O communication, or a complete failure of the drive to recognize connected devices despite correct parameter settings.

• Sourcing a Replacement: When you need to replace the 3ASC25H219B DATX133, always source it from an authorized ABB distributor or a highly reputable supplier of industrial automation components. This is the best way to ensure you receive a genuine, new, and fully functional module with correct documentation and support.

• Verification: Before ordering, verify the exact part number and cross-reference it with your ACS800 drive's manual or type code to ensure compatibility.



Conclusion

The ABB 3ASC25H219B DATX133 Digital I/O Extension Module is a vital component for maximizing the flexibility and integration potential of the ACS800 drive series. It empowers engineers to tailor the drive's control system to precise application requirements, enhancing overall system capability and efficiency. For maintenance, troubleshooting, or system expansion, understanding this module's role and specifications is key to ensuring minimal downtime and optimal performance of your industrial drive systems.
