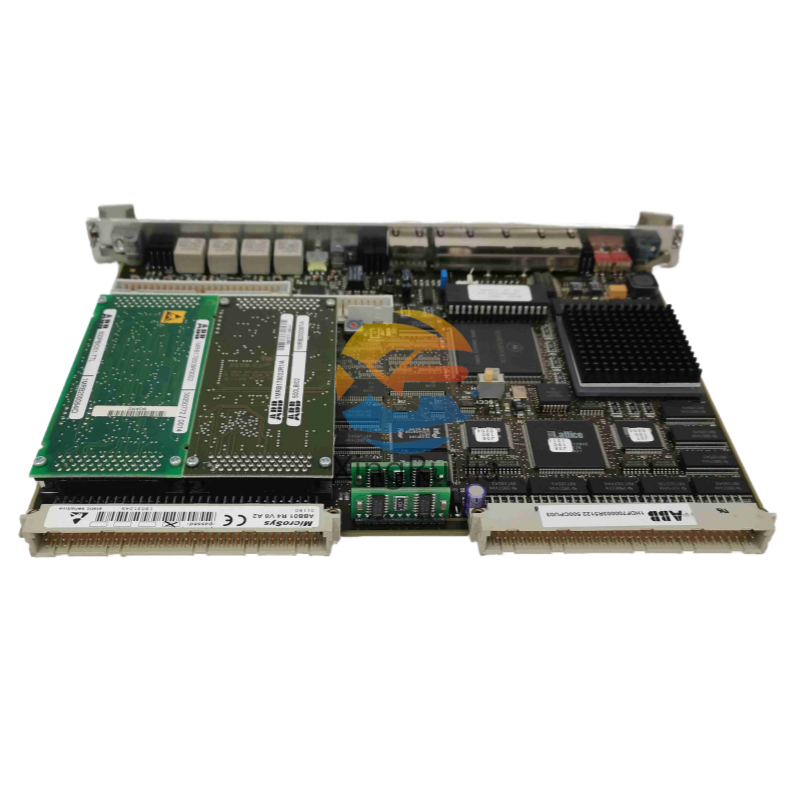

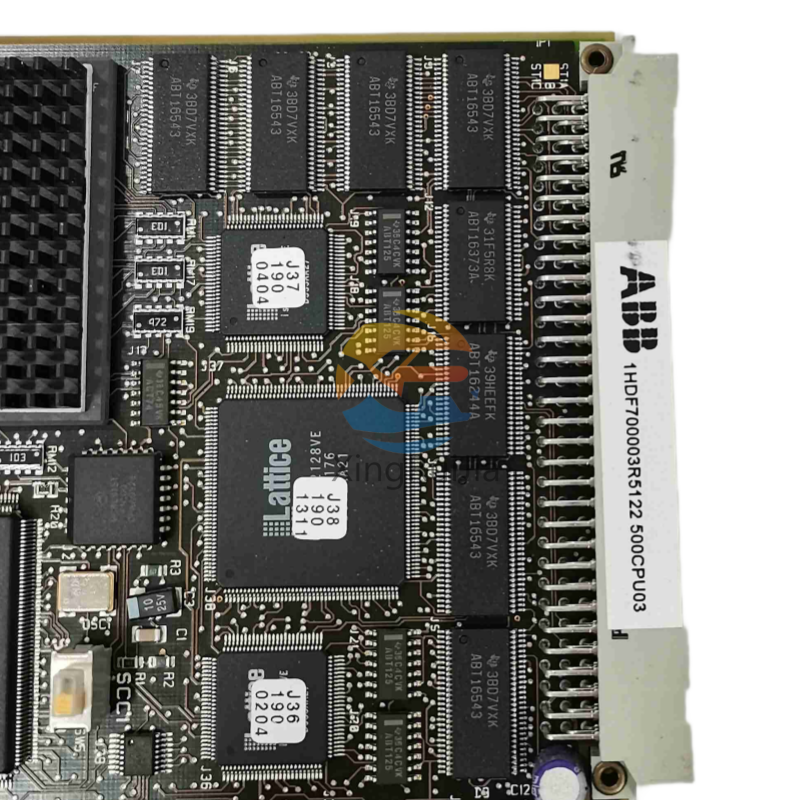

ABB 500CPU03 Control Processor (1HDF700003R5122)

Introduction:
The ABB 500CPU03 (P/N: 1HDF700003R5122) is the core computing module for AC 800M controllers, delivering deterministic control for mission-critical industrial processes. Engineered for 24/7 operation with dual ARM Cortex processors and SIL 3 safety capability.

Key Features:

• Dual-Core Processing: 800 MHz ARM Cortex-A9 CPUs for parallel task execution

• Deterministic Performance: ≤1ms scan time for 10,000 I/O points

• Safety-Certified: IEC 61508 SIL 3 / IEC 61131-6 PL e compliant

• Cyber-Secure: Hardware firewall and secure boot (IEC 62443-3-3)

• Redundancy Support: Hot standby with <100ms failover

• Memory Capacity: 2GB DDR3 RAM + 4GB Flash

Technical Specs Table:

Applications:

• Power plant turbine control

• Pharmaceutical batch validation

• Oil & gas safety instrumented systems

• High-speed packaging lines

Content Sections:

1. Mission-Critical Reliability
   Designed for >99.999% uptime in continuous processes. Features error-correcting code (ECC) memory and built-in watchdog timers that trigger automatic fallback during faults.

2. Cybersecurity Architecture
   Integrated TPM 2.0 chip enables secure key storage and encrypted communications. Supports role-based access control (RBAC) meeting NERC CIP requirements for power infrastructure.

3. Migration Advantage
   Backward-compatible with legacy AC 800M CPUs (PM864, PM865). Reduces retrofit costs by 40% through reusable configuration files and I/O mappings.
