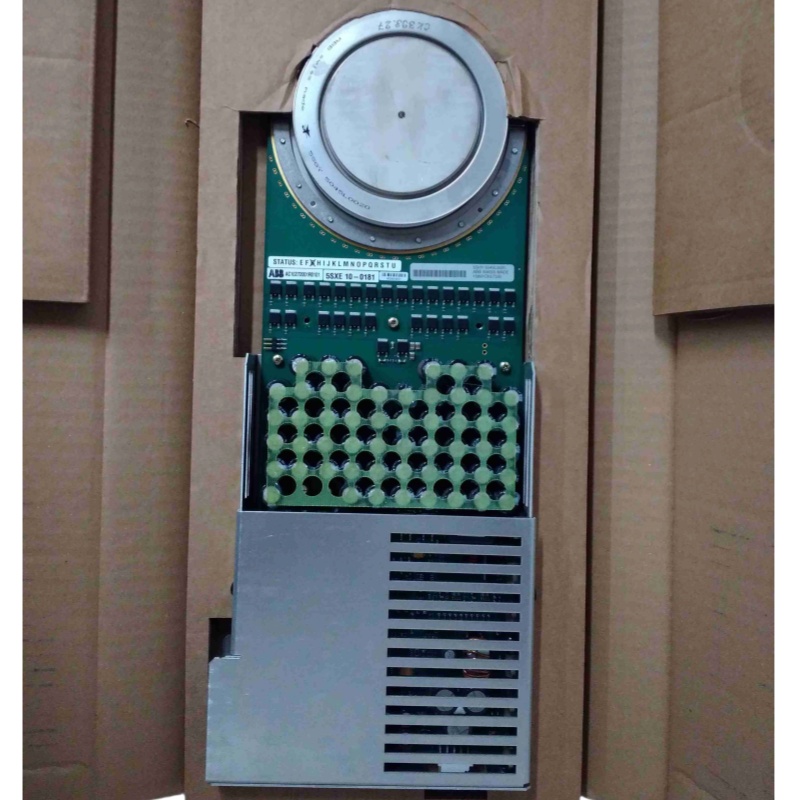

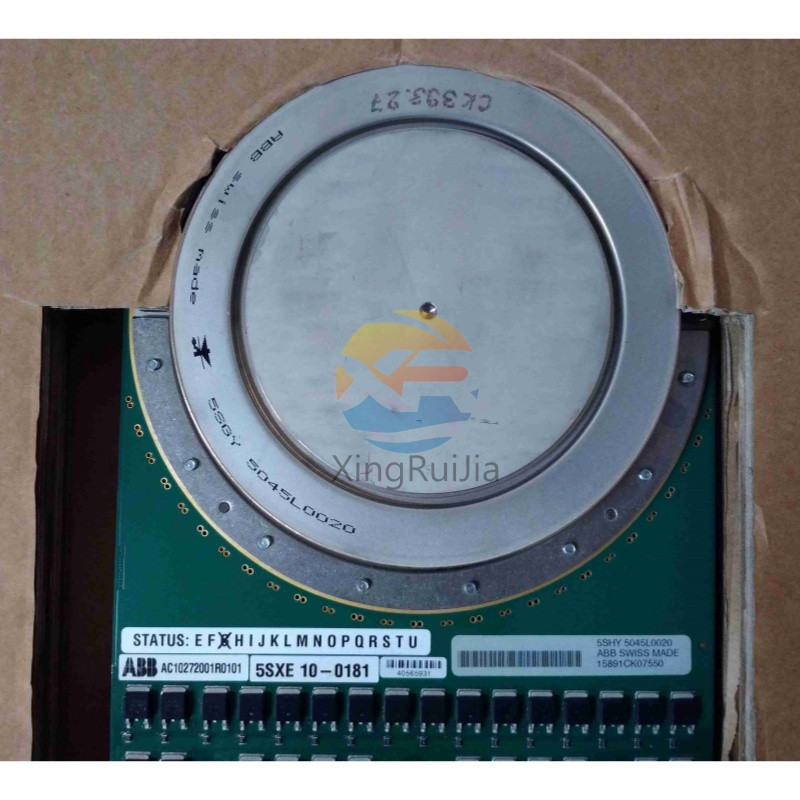

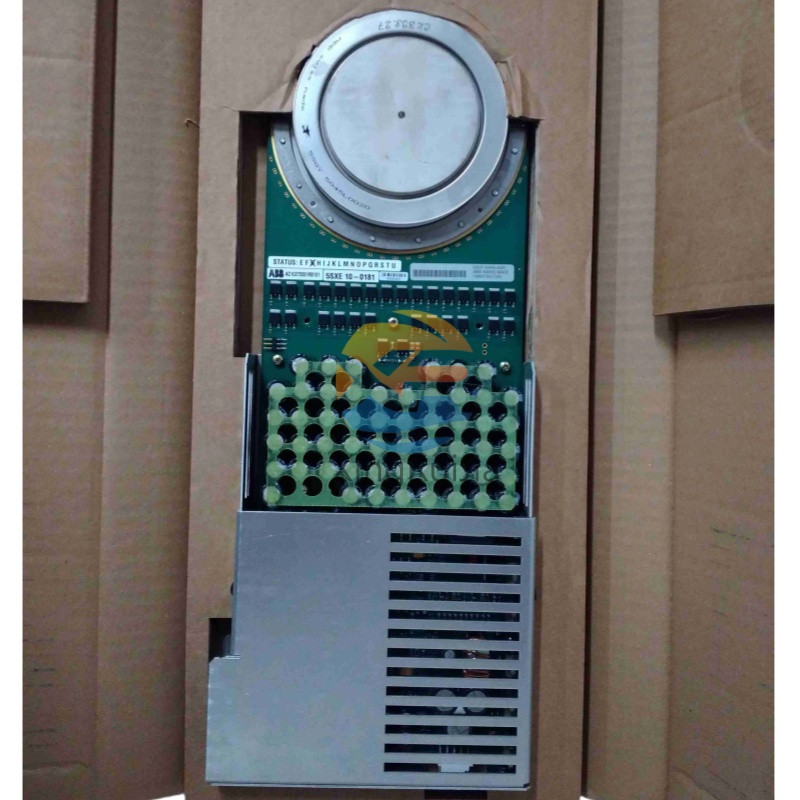

ABB 5SHY5045L0020: High-Power IGCT Module for Precision Control & Efficiency

The ABB 5SHY5045L0020 is a premier Integrated Gate Commutated Thyristor (IGCT) module, engineered to deliver exceptional performance in the most demanding high-power industrial and utility applications. As a cornerstone of advanced power electronics, this robust semiconductor device offers a critical combination of high current handling, superior efficiency, and precise switching capabilities. The 5SHY5045L0020 is designed to ensure unwavering reliability and optimal energy management in sophisticated power conversion systems worldwide.

Why the ABB 5SHY5045L0020 is the Ideal Choice for High-Power Systems

The 5SHY5045L0020 IGCT integrates the low conduction losses of a thyristor with the fast turn-off characteristics of a gate turn-off device. This synergy provides distinct advantages for system designers and operators:

• Exceptional Energy Efficiency: Engineered for minimal conduction and switching losses, the 5SHY5045L0020 maximizes energy conversion efficiency. This directly translates into substantial operational cost savings and reduced thermal demands on cooling systems in high-power setups.

• Superior Reliability and Robustness: Built with ABB's proven semiconductor technology and advanced, optimized packaging, this IGCT offers high thermal cycling capability and long-term operational stability. It’s designed to withstand the rigorous demands of harsh industrial environments, ensuring extended service life.

• Precise and Rapid Switching: The design enables fast turn-on and turn-off speeds, crucial for dynamic power control in high-frequency converters. This precision supports optimal system performance and responsiveness.

• High Power Density: The compact and efficient design of the 5SHY5045L0020 allows for high power output within a smaller physical footprint. This is invaluable for optimizing space in modern power converter and inverter designs.

• Integrated Protection & Diagnostics (via compatible gate units): While the 5SHY5045L0020 is the core IGCT, it is always driven by a dedicated gate unit. These gate units typically provide essential protective functions (like overvoltage and overcurrent protection) and diagnostic feedback, ensuring the safety and health of the overall system.

Detailed Product Parameters (Reference Only - Consult Official ABB Datasheet for Exact Values)

For accurate system design and integration, referring to the official ABB datasheet for the 5SHY5045L0020 is essential. However, here are typical parameters for a high-power IGCT of this caliber:

• Part Number: 5SHY5045L0020

• Device Type: Integrated Gate Commutated Thyristor (IGCT)

• Rated Voltage (VDRM/VRRM): Typically 4500 V (4.5 kV). This signifies its capability for high-voltage blocking in both forward and reverse directions, making it suitable for medium to high voltage power converters.

• Average On-State Current (ITAV): Designed for very high current handling. While specific values vary, IGCTs of this class handle hundreds to thousands of Amperes, making them ideal for high-power applications.

• Surge Current (ITSM): Features a high non-repetitive surge current withstand capability, providing critical resilience during fault conditions.

• Package Type: High-power disc-type (press-pack) package, specifically engineered for efficient heat transfer and robust clamping into advanced cooling systems.

• Thermal Resistance (RthJC): Junction-to-case thermal resistance, a key parameter for heat sink design, indicating how effectively heat is transferred from the device.

• Operating Junction Temperature (Tj): Typical operating temperature range, often from -40°C to +125°C, ensuring performance across various environmental conditions.

Note: The 5SHY5045L0020 requires a specific, compatible IGCT gate unit (sold separately or as part of a module) to function correctly. This gate unit provides the precise drive signals and often incorporates additional protection and monitoring features.

Key Applications of the ABB 5SHY5045L0020 IGCT

The exceptional capabilities of the ABB 5SHY5045L0020 make it an indispensable component across a broad spectrum of high-power industrial and grid-scale applications:

• High-Voltage Direct Current (HVDC) Transmission Systems: Essential for efficient long-distance power transmission, grid interconnections, and precise power flow regulation between large AC systems.

• Flexible AC Transmission Systems (FACTS): Including Static Synchronous Compensators (STATCOMs) and Static Var Generators (SVGs), which are vital for enhancing grid stability, improving power quality, and optimizing reactive power compensation.

• High-Power Industrial Drives: Used in large medium-voltage drives for heavy industries such as mining (e.g., massive conveyors, grinding mills), metals (e.g., hot and cold rolling mills), cement production, and pulp & paper, where precise motor control and energy efficiency are paramount.

• Renewable Energy Grid Integration: Employed in the sophisticated power converters of large-scale wind turbine generators and extensive solar photovoltaic (PV) farms to ensure stable, efficient, and compliant connection to the main electrical grid.

• Active Power Filters (APF): For advanced harmonic mitigation and significant power quality improvement in industrial electrical networks.

• Railway Traction Systems: In high-power converters for electric locomotives and mass transit systems, ensuring reliable and efficient propulsion in demanding railway environments.
