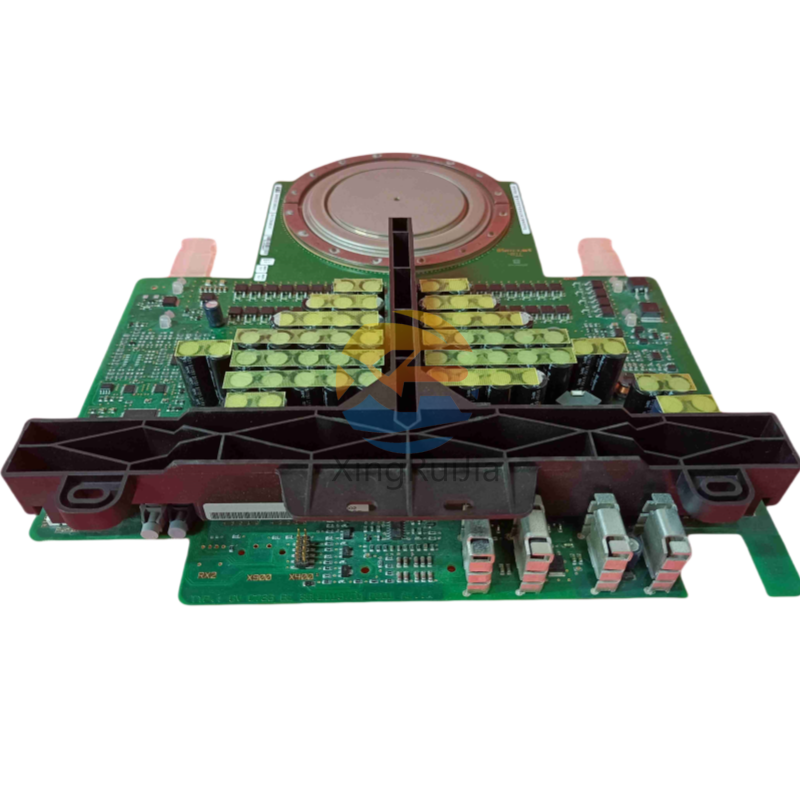

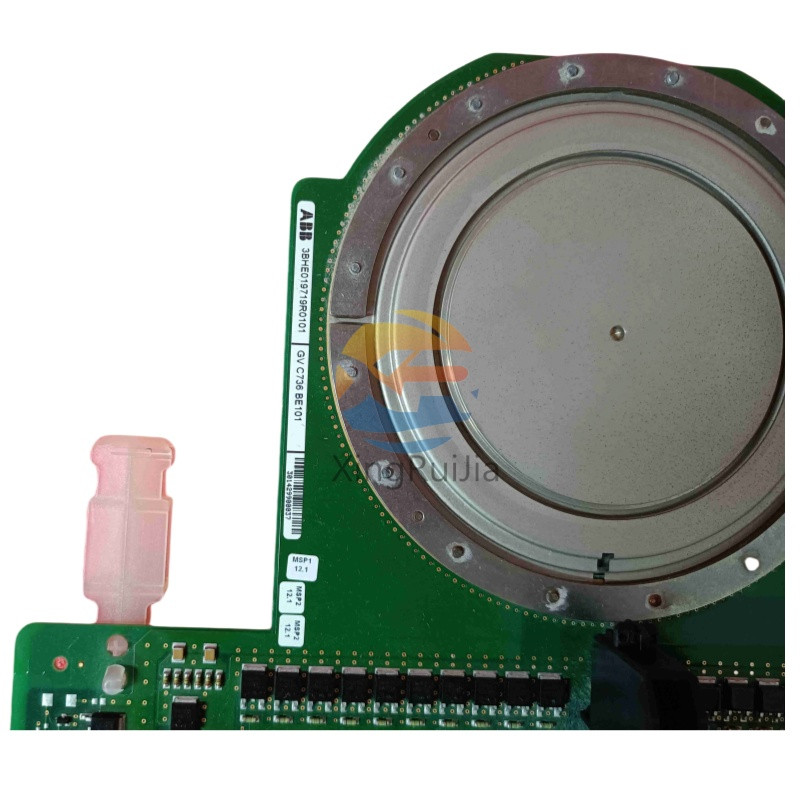

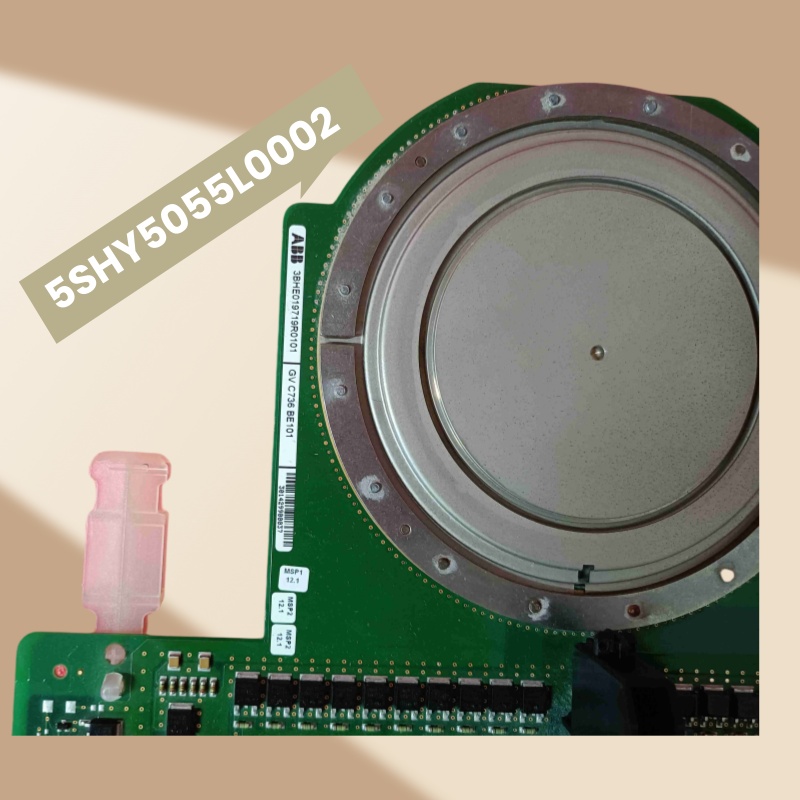

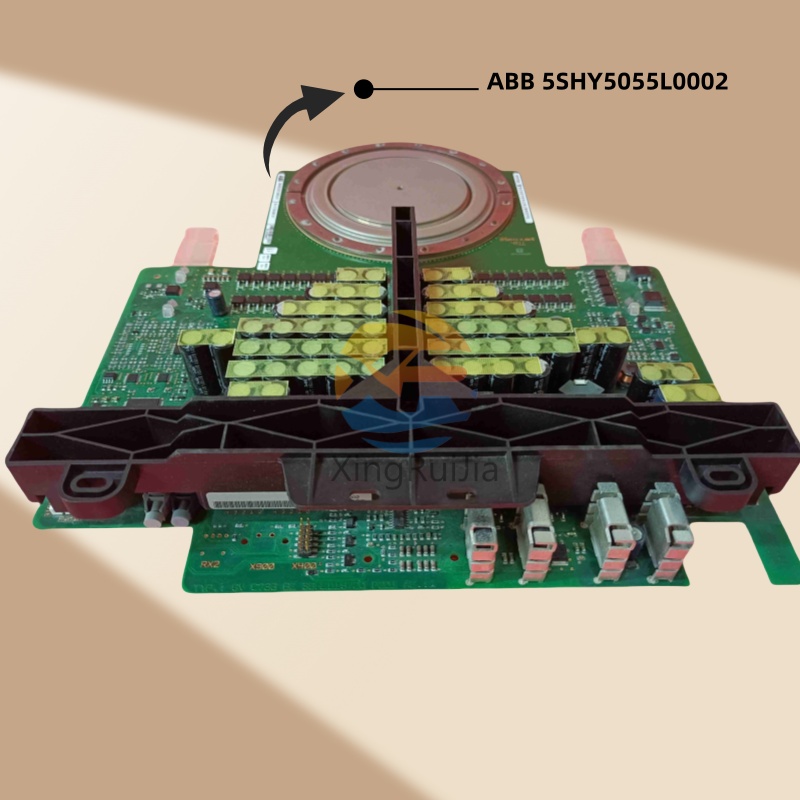

ABB 5SHY5055L0002 with 3BHE019719R0101 GVC736BE101: High-Power IGCT Module for Advanced Converters

The ABB 5SHY5055L0002 is a high-performance Integrated Gate Commutated Thyristor (IGCT) module, a cornerstone component in demanding power electronics applications. This robust IGCT is specifically designed to operate in conjunction with an optimized gate unit, often identified by part numbers like 3BHE019719R0101 and its core designation, GVC736BE101. Together, this integrated ABB solution delivers exceptional efficiency, reliability, and precise control for high-voltage, high-current power conversion systems, critical for modern industrial processes and utility grids.

Why Choose the ABB 5SHY5055L0002 with its Dedicated Gate Unit?

This ABB IGCT solution provides a powerful combination of attributes essential for cutting-edge power electronics:

• Superior Energy Efficiency: The 5SHY5055L0002 IGCT is engineered for minimal conduction and switching losses. When paired with the efficient drive from the 3BHE019719R0101 GVC736BE101 gate unit, this system maximizes energy conversion, leading to significant operational cost savings and reduced thermal stress on components.

• Unrivaled Reliability and Durability: Built with ABB's proven semiconductor technology and robust packaging, the 5SHY5055L0002 offers high thermal cycling capability. The protective features of the GVC736BE101 gate unit further enhance the system's longevity and stability even in harsh industrial environments.

• Precise & Dynamic Control: The intelligent gate unit provides the precise, high-current pulses necessary for the IGCT's rapid turn-on and turn-off. This enables dynamic control of power flow, crucial for high-frequency converters and applications requiring fast response times.

• Integrated Protection & Diagnostics: The 3BHE019719R0101 GVC736BE101 gate unit incorporates comprehensive protection functions, including active clamping for overvoltage, overcurrent detection, and overtemperature monitoring. It also provides valuable diagnostic feedback, aiding in proactive maintenance and system troubleshooting.

• High Power Density: The optimized design of the 5SHY5055L0002 IGCT and its compact, dedicated gate unit allows for powerful performance within a smaller physical footprint, ideal for optimizing space in power converter designs.

• Seamless Digital Integration: Gate units like the GVC736BE101 typically feature optical fiber interfaces. This ensures galvanic isolation from the high-voltage side and provides robust immunity to electrical noise, facilitating reliable integration into sophisticated control systems, often with compatibility for standards like IEC 61850.

Detailed Product Parameters & Component Breakdown

Understanding the specific contributions of each part number is crucial for grasping this powerful integrated solution:

• ABB 5SHY5055L0002 (Core IGCT Device):

  • Device Type: Integrated Gate Commutated Thyristor (IGCT)

  • Rated Voltage (VDRM/VRRM): Typically 5500 V (5.5 kV). This high voltage rating signifies its capability for extremely high-voltage blocking in both forward and reverse directions.

  • Average On-State Current (ITAV): Designed for very high current handling. While the exact figure should be verified from the official datasheet, IGCTs of this class manage hundreds to thousands of Amperes, making them suitable for the most demanding high-power applications.

  • Surge Current (ITSM): Features a high non-repetitive surge current withstand capability, providing critical resilience during fault conditions.

  • Package: High-power disc-type (press-pack) package, specifically engineered for efficient heat transfer and robust clamping into advanced cooling systems.

  • Key Feature: Optimized for extremely low switching losses and exceptional thermal cycling capability.

• ABB 3BHE019719R0101 GVC736BE101 (IGCT Gate Unit):

  • Function: This is the sophisticated electronic control unit precisely engineered to drive the 5SHY5055L0002 IGCT. It generates the exact gate pulses required for optimal switching performance and provides crucial protection for the IGCT.

  • Key Features:

    • Integrated Hard-Drive: Delivers the necessary high-current, high-voltage gate pulses for fast and reliable IGCT commutation.

    • Advanced Protection: Incorporates comprehensive protection features, including active clamping for overvoltage suppression, precise overcurrent detection, and real-time overtemperature monitoring.

    • Optical Fiber Interface: Ensures complete electrical isolation between the control electronics and the high-voltage IGCT, vital for safety and robust noise immunity in demanding environments.

    • Diagnostic Capabilities: Provides vital status information and fault indications to the main control system, facilitating quick diagnostics and maintenance.

    • Part Numbers: 3BHE019719R0101 is typically an assembly or module part number for the gate unit, with GVC736BE101 being a core component or a more specific identifier for this type of advanced gate drive.

Key Applications of ABB 5SHY5055L0002 & Integrated Solutions

The powerful capabilities and integrated intelligence of this ABB IGCT solution make it indispensable across a wide range of critical high-power industrial and grid-scale applications:

• High-Voltage Direct Current (HVDC) Transmission Systems: Essential for highly efficient long-distance bulk power transmission, grid interconnections, and precise power flow regulation between large AC systems.

• Flexible AC Transmission Systems (FACTS): Including Static Synchronous Compensators (STATCOMs) and Static Var Generators (SVGs), which are vital for enhancing grid stability, improving power quality, and optimizing reactive power compensation in modern power networks.

• High-Power Industrial Motor Drives: Employed in very large medium-voltage drives for heavy industries such as mining (e.g., massive conveyors, grinding mills), metals (e.g., hot and cold rolling mills), cement production, and pulp & paper, where precise motor control, high torque, and energy efficiency are paramount.

• Renewable Energy Grid Integration: Used in the sophisticated power converters of large-scale wind turbine generators and extensive solar photovoltaic (PV) farms to ensure stable, efficient, and compliant connection to the main electrical grid.

• Active Power Filters (APF): For advanced harmonic mitigation and significant power quality improvement in industrial electrical networks.

• Railway Traction Systems: In high-power converters for electric locomotives and mass transit systems, ensuring reliable and efficient propulsion in demanding railway environments.
