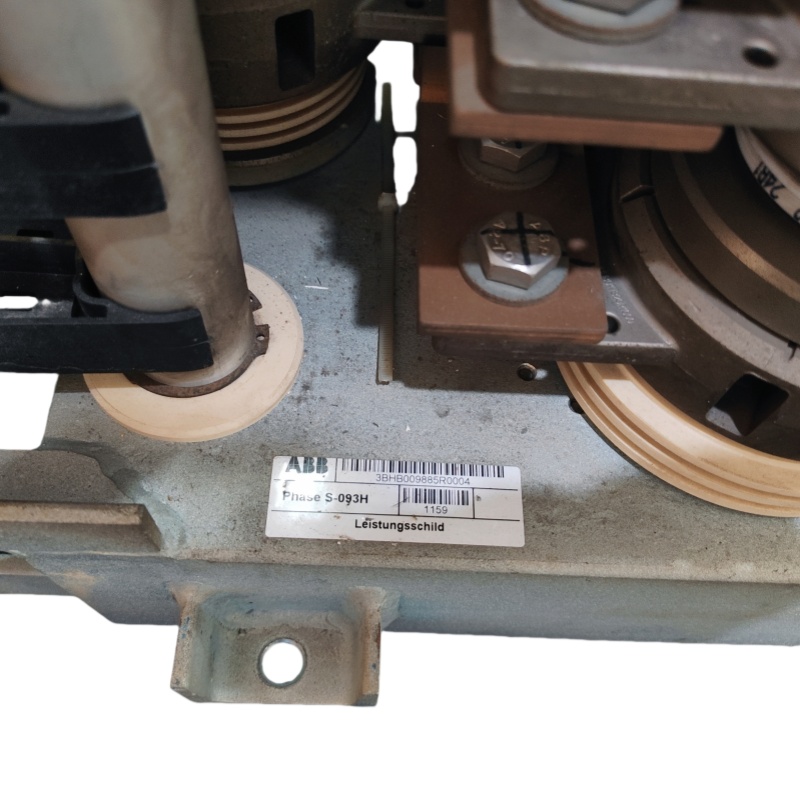

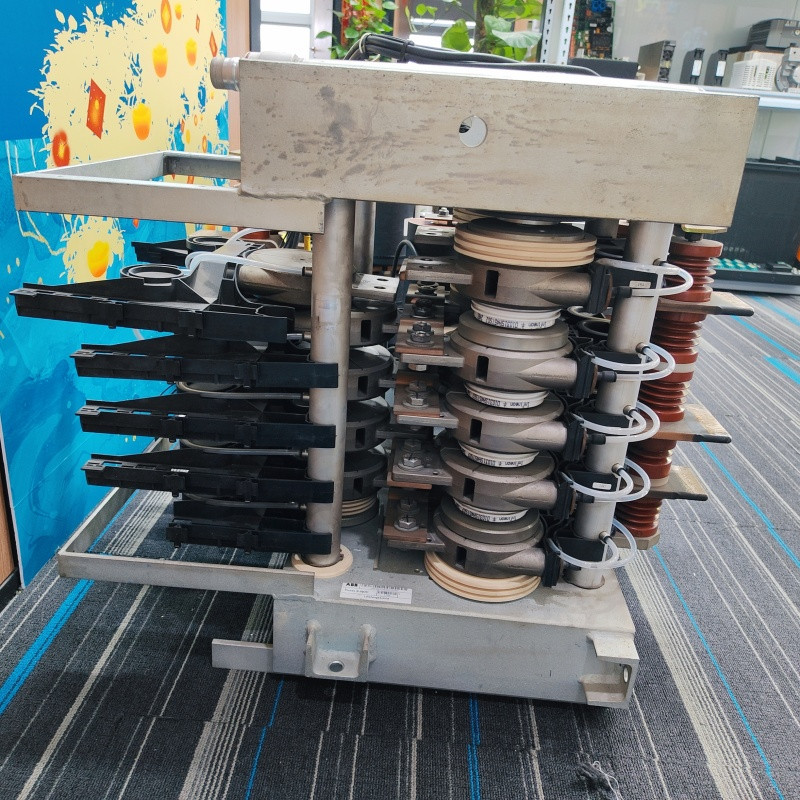

ABB S-093H 3BHB009885R0004: High-Power Diode for Demanding Rectification

The ABB S-093H 3BHB009885R0004 is a high-performance power diode designed for robust and efficient rectification in critical industrial and high-current applications. This specific ABB part number identifies a reliable and durable semiconductor device engineered to convert alternating current (AC) into direct current (DC) with minimal power loss. As a core component within ABB's extensive power semiconductor portfolio, the S-093H 3BHB009885R0004 is crucial for systems requiring high current handling, excellent thermal management, and long-term operational stability.

Product Features of the ABB S-093H 3BHB009885R0004 Diode

The ABB S-093H 3BHB009885R0004 diode is built to excel in challenging power environments, offering several key advantages:

• High Reverse Voltage Capability: Capable of blocking significant reverse voltages, ensuring reliable operation in high-voltage rectification circuits.

• Exceptional Forward Current Handling: Designed to efficiently conduct substantial forward currents, making it ideal for high-power rectification and free-wheeling applications.

• Robust Surge Current Capability: Features a high non-repetitive surge current rating, providing enhanced reliability and a safety margin during transient overload conditions.

• Optimized Thermal Performance: Engineered with a low thermal resistance and a robust package, ensuring efficient heat dissipation. This is vital for maintaining device integrity and extending its lifespan under continuous high-power operation.

• High Reliability and Durability: Manufactured to stringent industrial standards, providing consistent performance and a long operational life in harsh industrial settings.

• Low Forward Voltage Drop: Minimizes power losses during conduction, contributing to higher overall system efficiency and reduced heat generation.

Detailed Product Parameters (Reference - Always Consult Official ABB Datasheet for Exact Values)

For precise system design and integration, understanding the specific technical parameters of the ABB S-093H 3BHB009885R0004 is essential. While exact figures should always be verified with the official ABB datasheet, here are typical parameters for a high-power diode of this caliber:

• Part Number: 3BHB009885R0004 (ABB's complete assembly/module identifier)

• Device Type: Power Diode (Rectifier Diode)

• Repetitive Peak Reverse Voltage (VRRM): Often in the range of 1600V to 2500V, indicating the maximum peak voltage the diode can block in the reverse direction repeatedly.

• Average Forward Current (IF(AV)): Typically ranges from 700A to 1200A, signifying its continuous current carrying capacity in rectification applications.

• Non-Repetitive Peak Forward Surge Current (IFSM): Could be in the range of 10kA to 20kA, representing the maximum surge current the diode can withstand for a short duration.

• Forward Voltage Drop (VF): The voltage drop across the diode when it's conducting, usually around 1.0V to 1.5V at rated current, indicating its efficiency.

• Operating Junction Temperature (Tj): Typical operating temperature range, often from -40°C to +125°C, ensuring performance across various environmental conditions.

• Package Type: Commonly a disc-type or capsule-type package, designed for clamping between heat sinks to ensure efficient thermal management.

• Thermal Resistance (RthJC): Junction-to-case thermal resistance, a key parameter for heat sink design, indicating how effectively heat is transferred away from the active semiconductor junction.

Please note: These parameters are provided as a typical range for similar devices. For the exact specifications of the 3BHB009885R0004, always refer to the official ABB product datasheet.

Applications of the ABB S-093H 3BHB009885R0004 Diode

The robust and high-power capabilities of the ABB S-093H 3BHB009885R0004 make it an indispensable component in a wide range of industrial and power electronics systems:

• High-Current Rectifiers: Essential for converting AC power to DC in large industrial power supplies, electrochemical processes (e.g., aluminum smelting, chlorine production), and DC motor drives.

• DC Power Supplies: Used in heavy-duty battery chargers for industrial vehicles, forklifts, and large energy storage systems.

• Welding Equipment: Key components in high-power welding rectifiers.

• Uninterruptible Power Supplies (UPS): Utilized in the rectifier sections of large industrial and data center UPS systems to ensure continuous, reliable power.

• Traction Systems: Applied in power converters for electric locomotives and mass transit systems.

• Industrial Drives: Used in the input rectifier stages of variable speed drives (VSDs) for large motors.

• Free-Wheeling Diodes: Employed in conjunction with high-power switching devices (like thyristors or IGCTs) to protect them from inductive spikes and to provide a path for reactive current.

By integrating the ABB S-093H 3BHB009885R0004 diode, engineers and system integrators can ensure the highest levels of efficiency, reliability, and durability in their power conversion solutions.
