Model：ABB CP800 Control Panel

Brand: ABB
Price range (USD): 1000-20000
Country: Sweden
Parameter: Enhanced operational efficiency through intuitive user interface
Reduced downtime with robust industrial construction
Flexible integration with existing automation systems
Scalable solution that grows with your operational needs

Product Overview

The ABB CP800 control panel is part of ABB's comprehensive range of industrial automation products. Engineered for demanding industrial environments, it offers reliable performance, intuitive operation, and seamless integration capabilities.

Featuring a high-resolution display with responsive touch interface, the CP800 provides operators with clear visualization of process data and easy access to control functions. Its rugged construction ensures long-term reliability even in harsh conditions.

The CP800 supports multiple industrial communication protocols, enabling flexible integration with various automation systems. The modular design allows for customization to meet specific application requirements.

ABB CP800 Control Panel

Key Benefits

Enhanced operational efficiency through intuitive user interface
Reduced downtime with robust industrial-grade construction
Flexible integration with existing automation systems
Scalable solution that grows with your operational needs
Comprehensive diagnostics and maintenance features

Technical Specifications

Display Type	High-brightness TFT LCD with projected capacitive touch
Screen Size	15.6 inches
Resolution	1366 x 768 pixels (HD)
Processor	Intel Atom dual-core processor, 1.91 GHz
Memory	4 GB DDR3 RAM
Storage	64 GB SSD
Communication Ports	2x Ethernet (10/100/1000), 4x USB (2.0/3.0), 1x RS-232, 1x RS-485
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Protection Rating	IP65 (front panel), IP20 (rear panel)
Power Supply	24 V DC (18-32 V DC range)
Power Consumption	Max. 45 W
Dimensions (W x H x D)	420 x 320 x 60 mm (16.5 x 12.6 x 2.4 inches)
Weight	5.2 kg (11.5 lbs)
Certifications	CE, UL, cUL, ATEX, IECEx

Key Features

Advanced HMI

High-resolution touchscreen with intuitive user interface for efficient process monitoring and control. Supports multi-touch gestures and customizable display layouts.

Robust Construction

Designed to withstand harsh industrial environments with IP65 front panel protection, resistant to dust, water, and chemicals.

Flexible Connectivity

Multiple communication ports for seamless integration with various automation systems including PROFINET, EtherNet/IP, and Modbus TCP.

Easy Configuration

User-friendly software tools for quick setup and customization. Drag-and-drop interface reduces engineering time.

Energy Efficient

Low power consumption design with energy-saving modes. Complies with international energy efficiency standards.

Remote Access

Capability for remote monitoring and control via secure network connections. VPN support for safe external access.

ABB CP800 Control Panel

Application Areas

The ABB CP800 control panel is suitable for a wide range of industrial applications across various sectors. Its robust design and flexible configuration make it ideal for both simple and complex automation tasks.

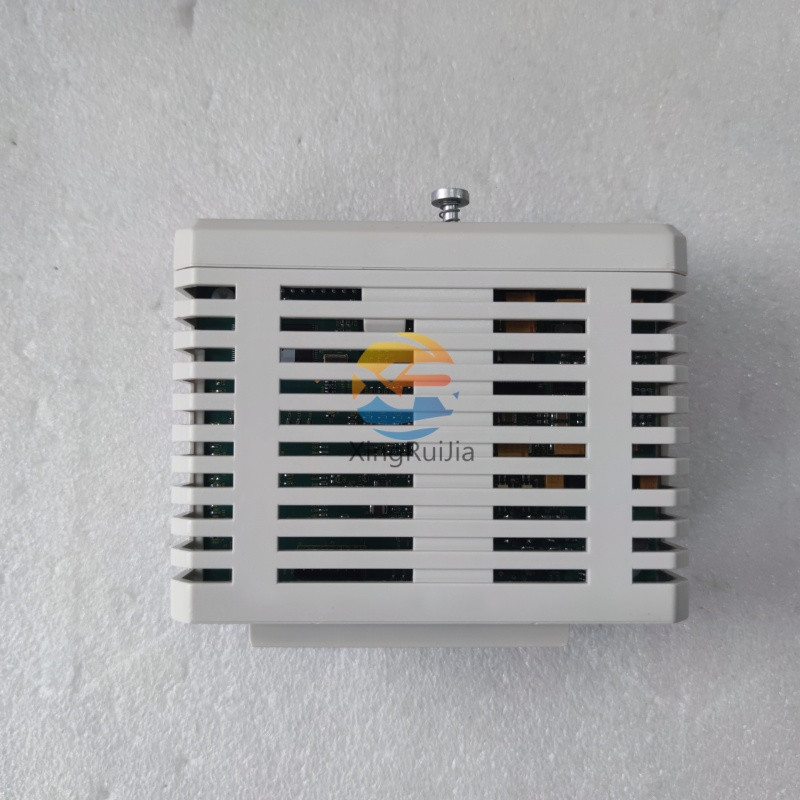

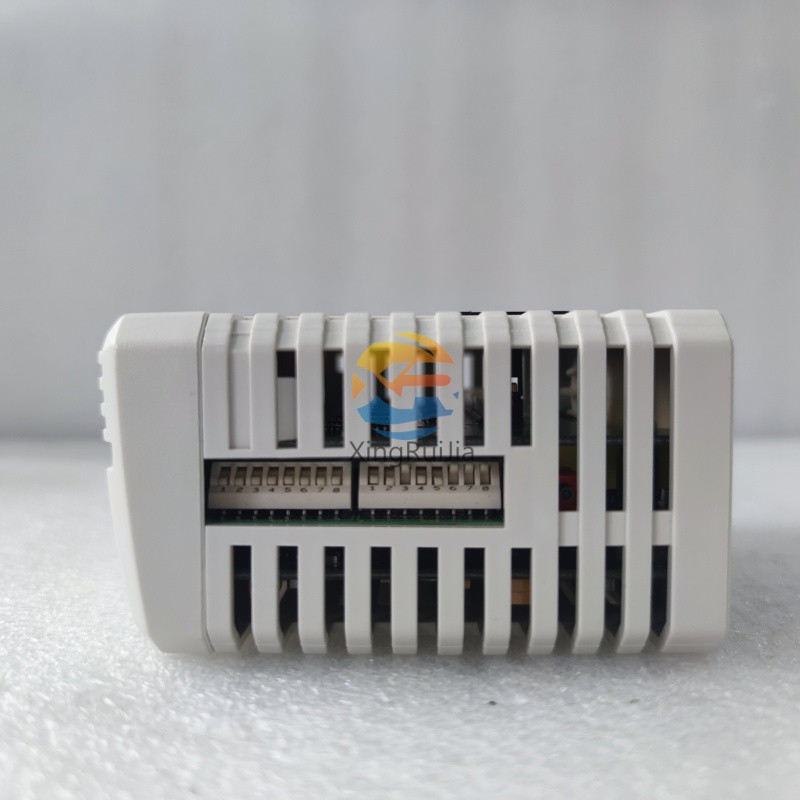

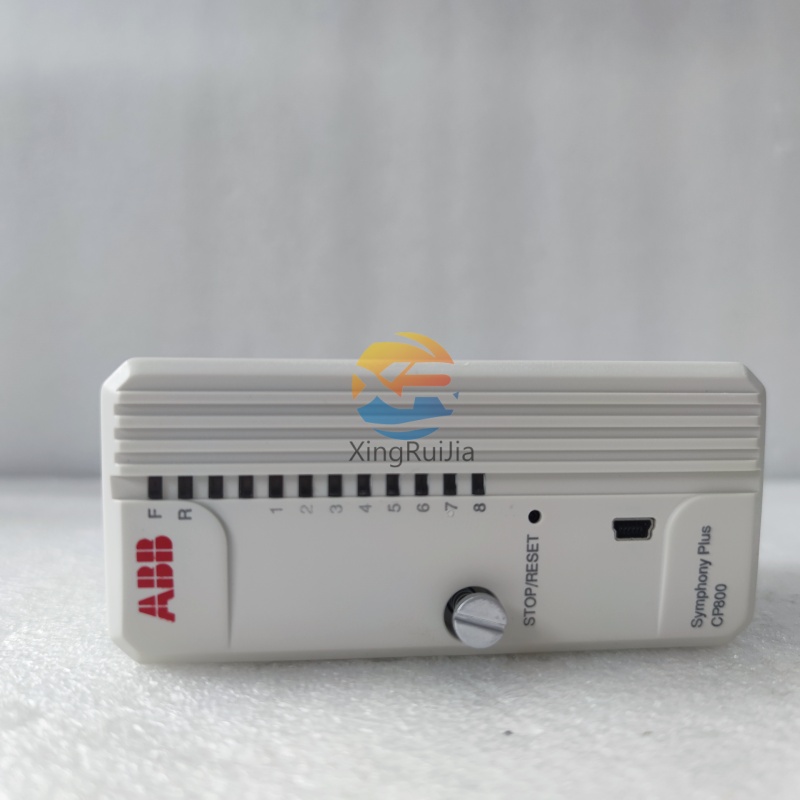

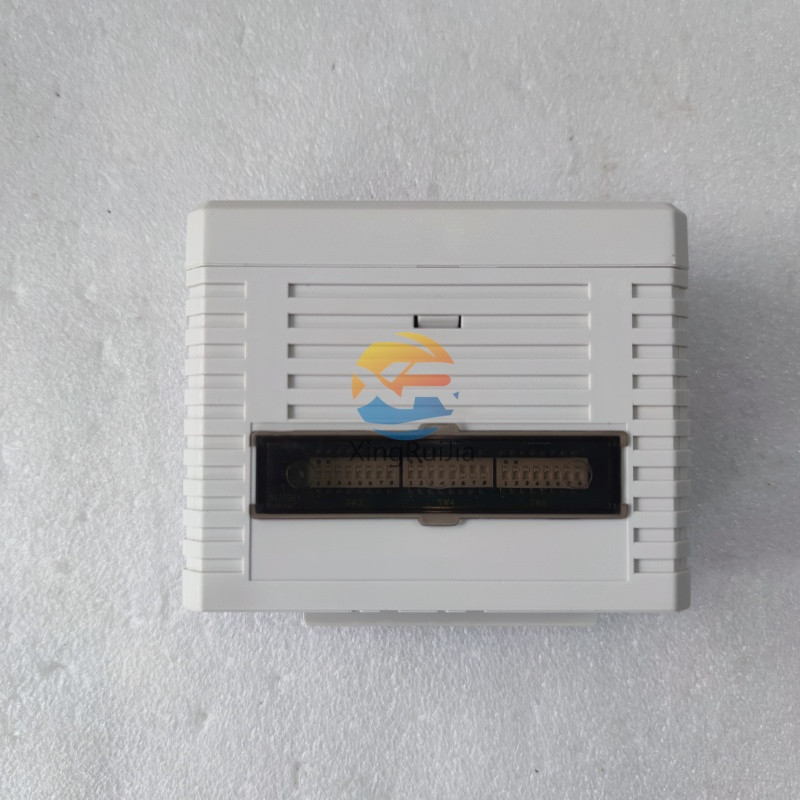

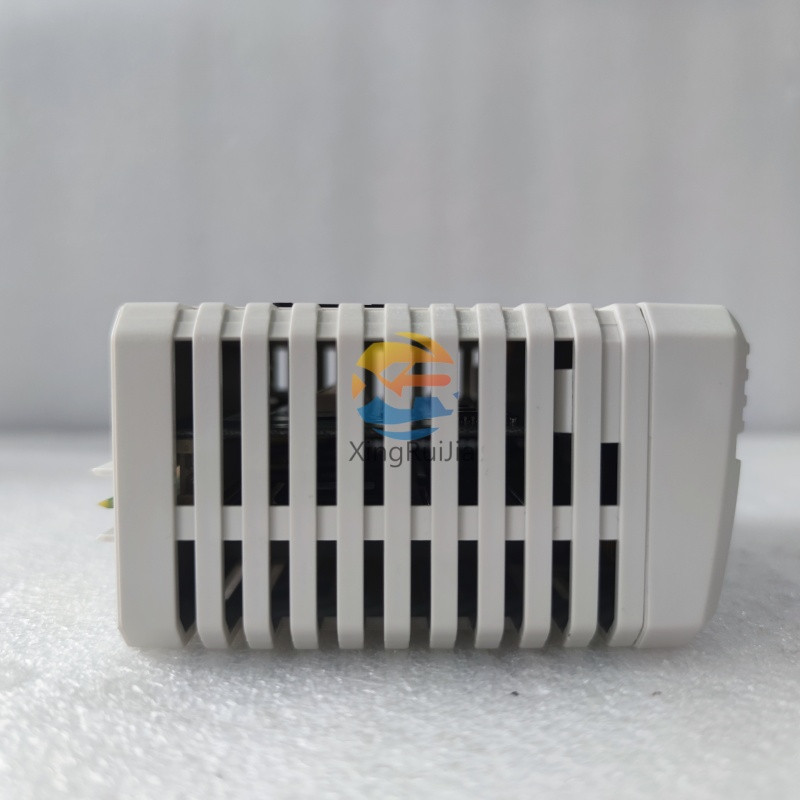

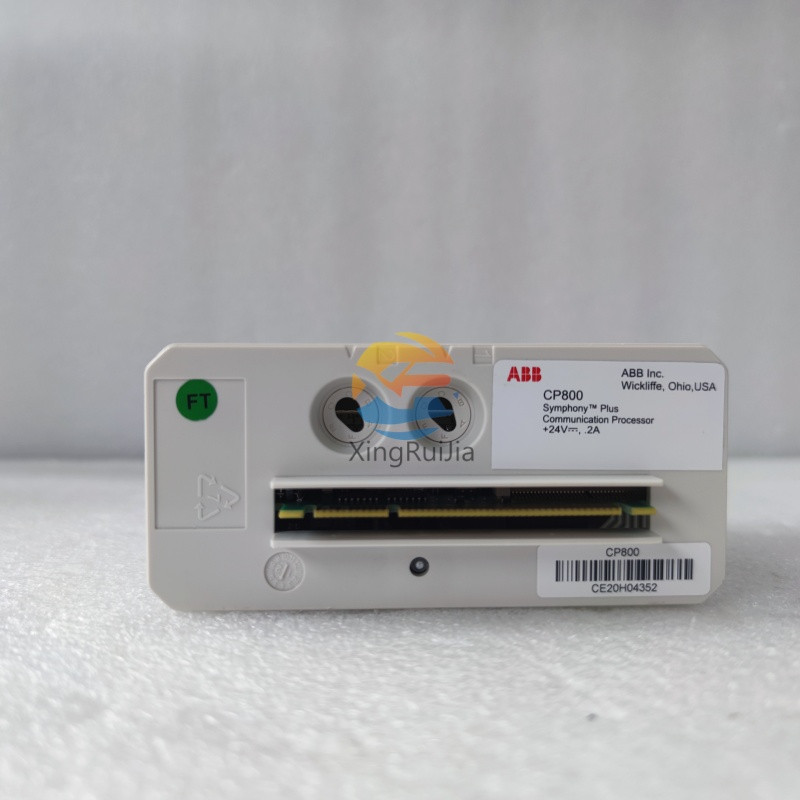

Photo Gallery
