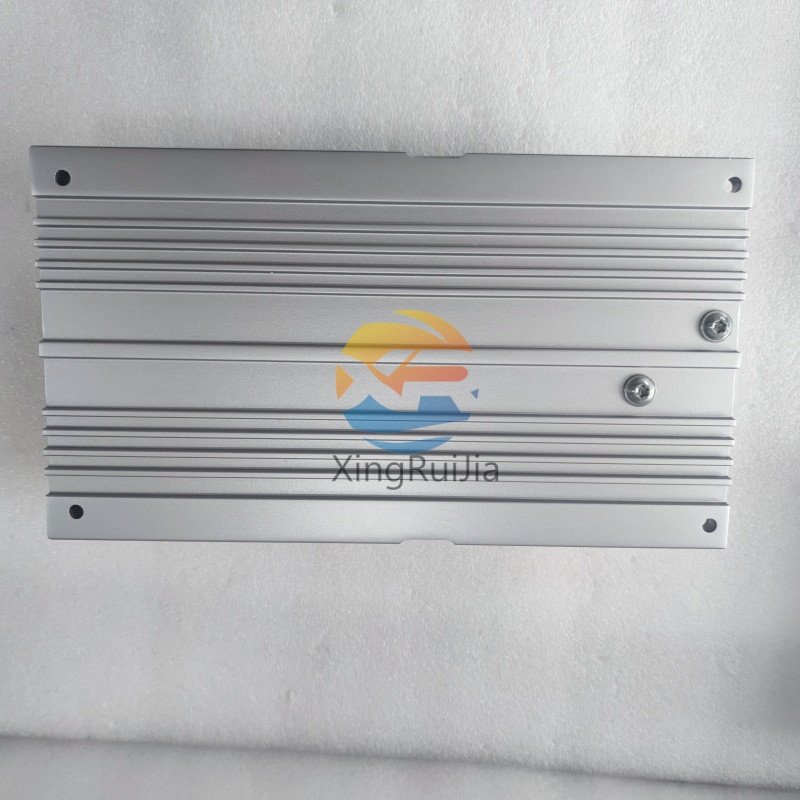

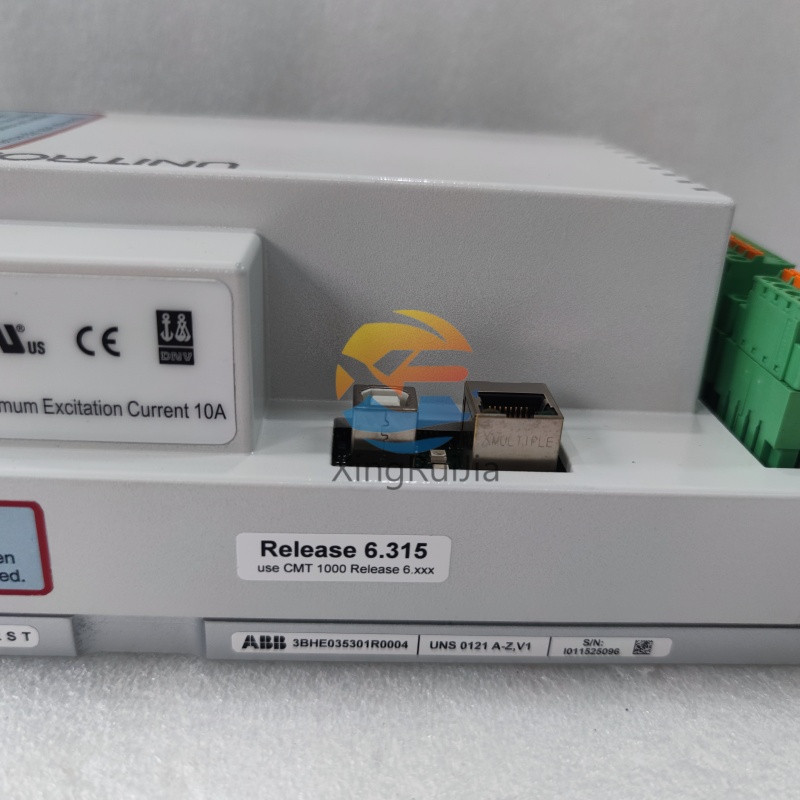

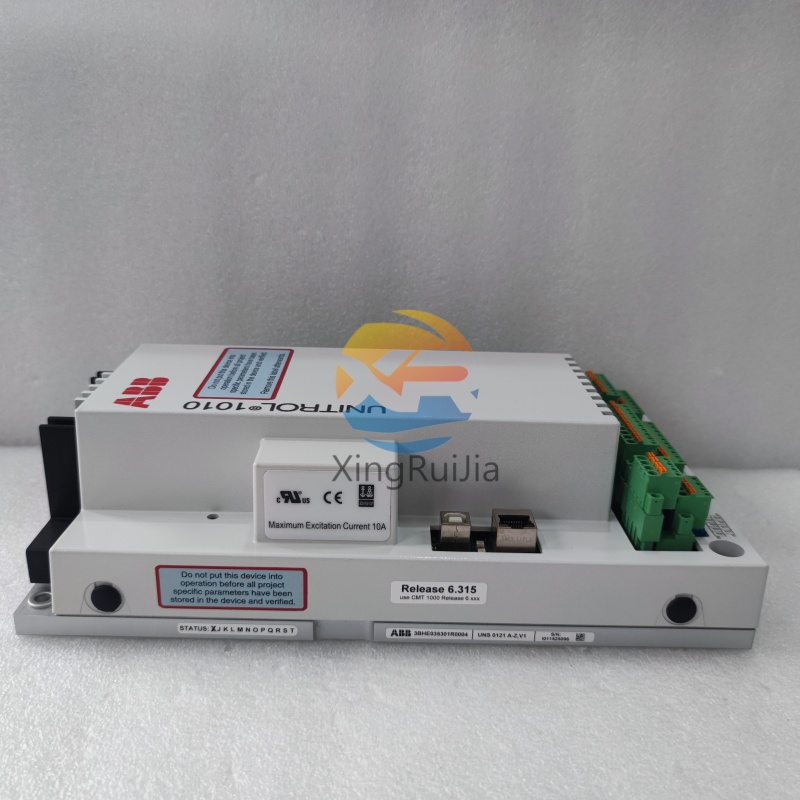

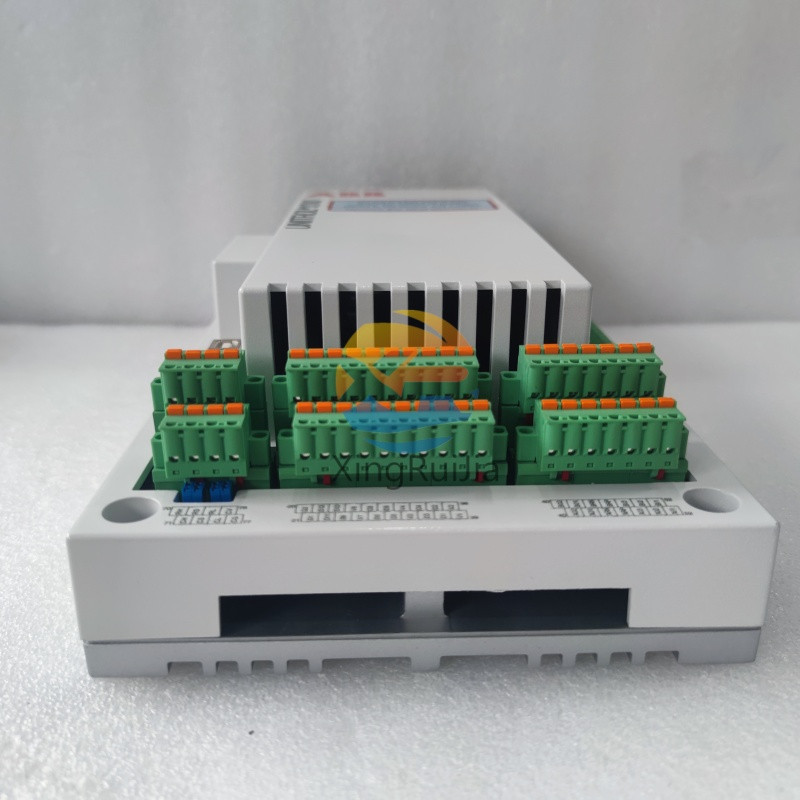

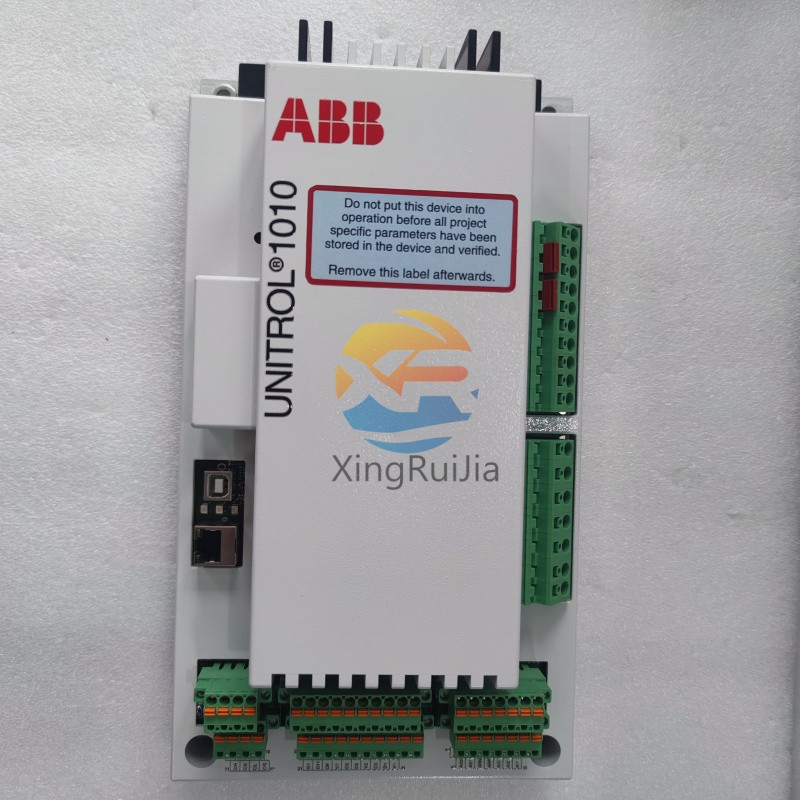

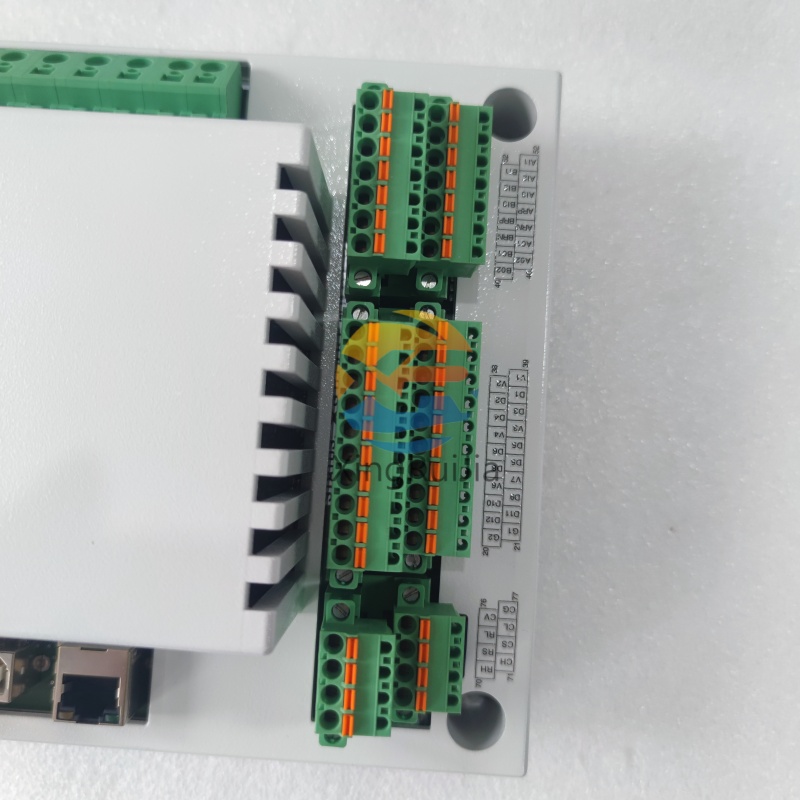

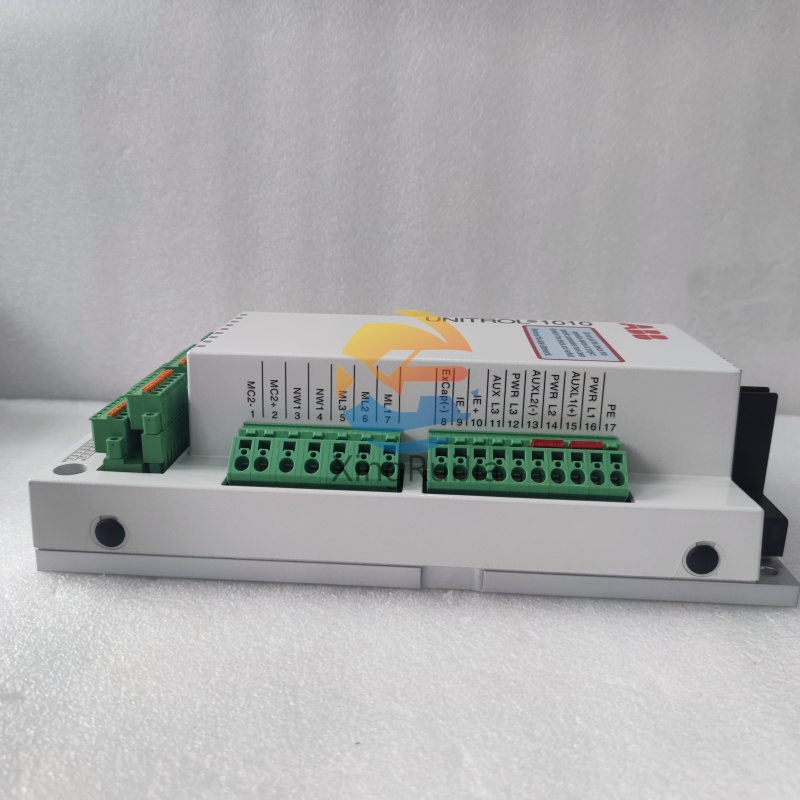

UNITROL 1010 Excitation System

Order Code: 3BHE035301R0004 | Brand: ABB

Precision, Reliability, and Simplicity in Synchronous Machine Control

Overview & Executive Summary

The ABB UNITROL 1010 is a state-of-the-art, fully digital static excitation system designed for the precise control and protection of synchronous machines. As part of ABB's renowned UNITROL family, the 1010 model represents an optimal blend of robust performance, operational simplicity, and cost-effectiveness. It is engineered for a wide range of applications, from small and medium-sized generators and motors in power plants and industrial facilities to synchronous condensers for power factor correction.

The system, identified by the order code 3BHE035301R0004, is built upon decades of ABB's expertise in power electronics and automation. Its primary function is to regulate the generator's terminal voltage and reactive power output by controlling the DC current supplied to the synchronous machine's field winding. This ensures stable grid operation, improves power quality, and enhances the overall efficiency and longevity of your rotating equipment.

This page provides an in-depth look at the UNITROL 1010, detailing its core features, technical specifications, benefits, and why it remains a preferred choice for engineers and plant managers worldwide.

Key Features & Product Highlights

The UNITROL 1010 is packed with features that deliver unparalleled control and protection. Here are the core highlights:

• Fully Digital Control: At the heart of the system is a powerful 32-bit microprocessor, ensuring highly accurate, fast, and reliable control algorithms. Digital technology eliminates drift associated with analog systems and provides exceptional repeatability.

• Intuitive Human-Machine Interface (HMI): The system features a clear, backlit graphical display and a simple keypad for local operation. This allows for easy parameter setting, real-time data monitoring, and access to event recordings and fault logs.

• Advanced Control & Limiting Functions: Beyond basic voltage control, the UNITROL 1010 includes sophisticated functions like:

  • Power System Stabilizer (PSS): Damps power oscillations to enhance grid stability.

  • Under-Excitation Limiter (UEL): Prevents the machine from operating in an unstable under-excited region.

  • Over-Excitation Limiter (OEL): Protects the field winding from thermal damage during short-term overloads.

  • V/Hz Limiter: Protects the generator and step-up transformer from excessive magnetic flux.

• Comprehensive Machine and System Protection: The integrated protection functions safeguard your valuable assets, including:

  • Loss of Excitation (40)

  • Overvoltage (59)

  • Overcurrent (51)

  • Field Overcurrent (76)

  • Thyristor Bridge Fuse Failure Monitoring

• Flexible Excitation Power Sources: The UNITROL 1010 can be supplied from a potential transformer (PT) connected to the generator terminals (source: machine itself) or from a separate auxiliary power supply (source: grid), providing operational flexibility.

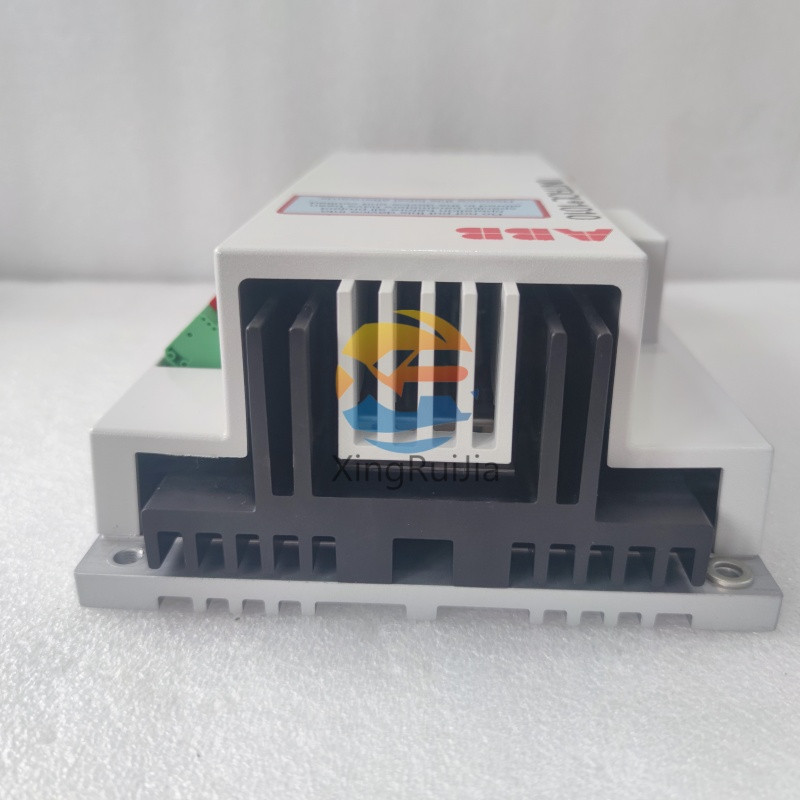

• Robust Thyristor Power Bridge: The system utilizes a high-quality, forced-air cooled thyristor bridge for converting AC power to the required DC field current. This design is known for its high efficiency, ruggedness, and ability to handle high surge currents.

• Extensive Communication Capabilities: Equipped with standard serial communication interfaces (e.g., Modbus RTU), the UNITROL 1010 seamlessly integrates into higher-level control systems like Distributed Control Systems (DCS) or Plant SCADA for centralized monitoring and control.

• Condition Monitoring & Diagnostics: Continuous self-monitoring and detailed fault recording with timestamps simplify troubleshooting, reduce downtime, and facilitate predictive maintenance.

Technical Specifications

The following table provides a detailed breakdown of the technical specifications for the UNITROL 1010.

In-Depth Application Use Cases

The UNITROL 1010 is a versatile solution for various sectors. Here’s how it is applied in different industries:

1. Thermal and Hydroelectric Power Generation

In power plants, the UNITROL 1010 ensures the generator maintains a constant terminal voltage regardless of load changes, which is crucial for grid code compliance. It provides fast response to load transients and stabilizes the grid through its PSS function. Its robustness ensures high availability, which is critical for base-load and peaking power plants.

2. Industrial Power Generation (Cogeneration / CHP)

For industries like pulp & paper, chemical, or manufacturing with captive power plants, the UNITROL 1010 manages generator voltage and reactive power flow, optimizing the interaction with the utility grid. This helps in avoiding penalty charges for poor power factor and ensures stable operation of the in-plant electrical network.

3. Large Synchronous Motor Drives

For driving large compressors, pumps, or fans in industries such as oil & gas and mining, the UNITROL 1010 controls the excitation of synchronous motors. This improves the overall power factor of the industrial facility and provides high starting torque and stable operation under variable load conditions.

4. Synchronous Condensers

When a synchronous machine is used solely for reactive power compensation (as a synchronous condenser), the UNITROL 1010 is the ideal control system. It dynamically adjusts the field current to inject or absorb reactive power, thereby regulating voltage on transmission or distribution networks without any active power generation.

Competitive Advantages & Customer Benefits

Choosing the ABB UNITROL 1010 provides tangible benefits that impact your bottom line:

• Enhanced Grid Stability and Power Quality: Precise voltage control and damping of oscillations contribute to a more stable and reliable electrical grid.

• Improved Machine Protection and Lifespan: Comprehensive protection functions prevent costly damage to the generator/motor and its associated transformer, extending the equipment's operational life.

• Reduced Operational Costs (OPEX): High efficiency of the thyristor bridge reduces power losses. Advanced diagnostics and easy maintenance lower the total cost of ownership.

• Increased System Availability and Reduced Downtime: High reliability and built-in diagnostics allow for quick troubleshooting and rectification of issues, maximizing plant uptime.

• Simplified Engineering and Commissioning: Pre-configured software templates and a user-friendly interface significantly reduce the time and effort required for setup and commissioning.

• Future-Proof Platform: Digital platform and communication capabilities allow for easy integration into modern industrial IoT and Industry 4.0 ecosystems.

• Global Support and Expertise: Backed by ABB's global service network, ensuring access to spare parts, technical documentation, and expert support wherever you are.

Frequently Asked Questions (FAQ)

Q1: What is the main difference between UNITROL 1010 and other models in the UNITROL family, like the 1020 or 5000?
A1: The UNITROL 1010 is designed as a robust and cost-effective solution for small to medium-sized machines. The UNITROL 1020 offers higher performance and more advanced features for larger, more critical applications. The UNITROL 5000 series represents the top tier, with decentralized architecture (DCSG) for the largest generators in the world, offering maximum redundancy and availability.

Q2: Can the UNITROL 1010 be retrofitted to replace an older analog excitation system?
A2: Yes, absolutely. Retrofitting with a UNITROL 1010 is a common and highly beneficial upgrade. It modernizes the control system, improves performance and reliability, and provides much-needed diagnostic capabilities. ABB provides comprehensive retrofit solutions, including engineering support.

Q3: How do I access the data from the UNITROL 1010 remotely?
A3: The built-in serial communication interface (e.g., Modbus RTU) allows you to connect the device to a gateway or directly to a plant SCADA/DCS system. All measured values, status information, alarms, and faults can be transmitted for remote monitoring and control.

Q4: What is the typical delivery time for the order code 3BHE035301R0004?
A4: Delivery times can vary based on configuration and global stock levels. Please contact your local ABB representative or an authorized distributor for the most accurate and up-to-date delivery information.

Q5: Is the Power System Stabilizer (PSS) function standard?
A5: The PSS is typically an optional function. It is highly recommended for generators that are connected to weak grids or are prone to power oscillations.

Conclusion & Call to Action

The ABB UNITROL 1010 (3BHE035301R0004) is more than just an excitation system; it is a critical investment in the stability, efficiency, and reliability of your synchronous machine operations. Its proven design, digital intelligence, and comprehensive feature set make it the ideal choice for a wide spectrum of industrial and power generation applications.

By choosing UNITROL 1010, you are partnering with a global leader in power technologies and gaining access to a product built on a legacy of excellence.

Ready to optimize your synchronous machine performance?

• Contact us today for a detailed technical consultation or a custom quote.

• Download the product manual and datasheet from our official resource library.

• Find your local ABB representative to discuss your specific application needs.

ABB – Engineering a Sustainable and Productive Future.
