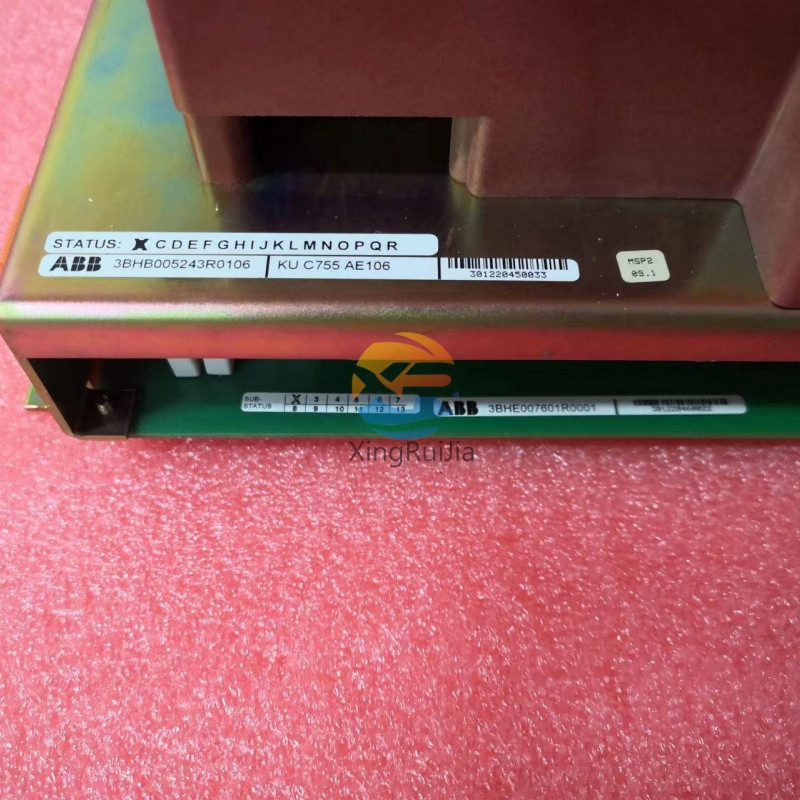

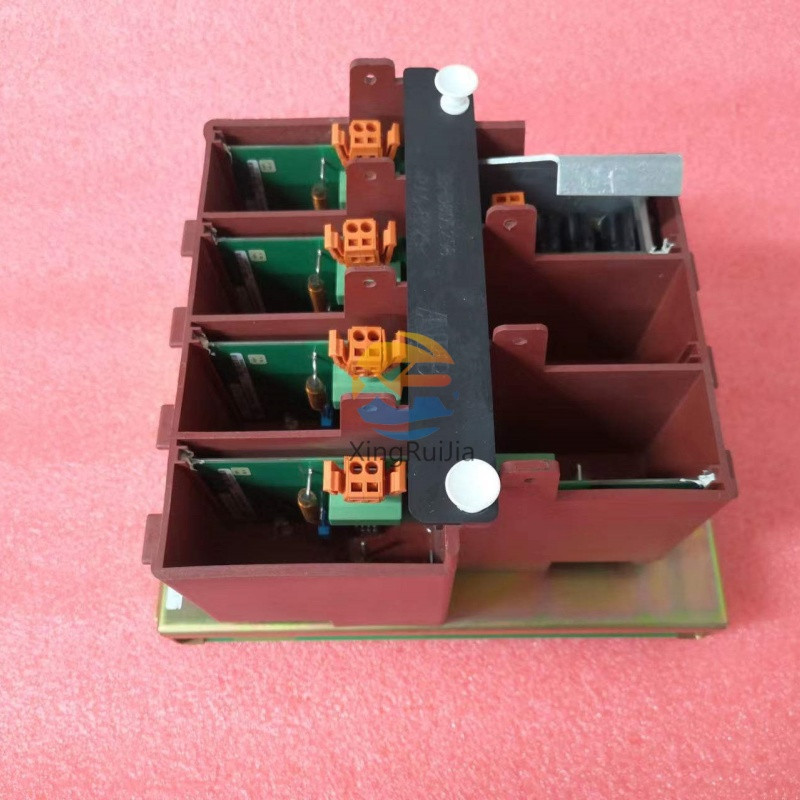

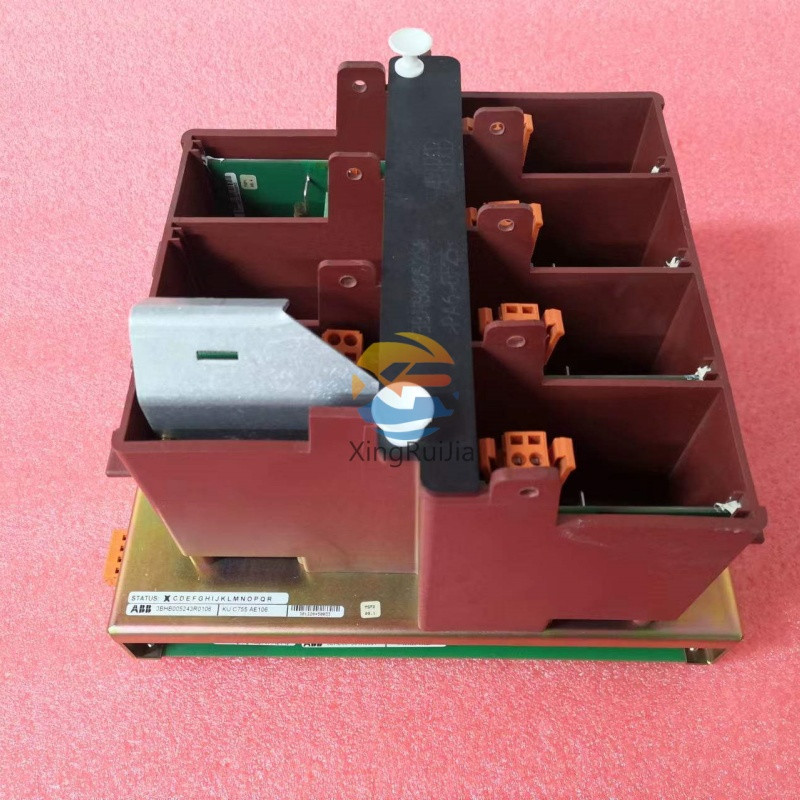

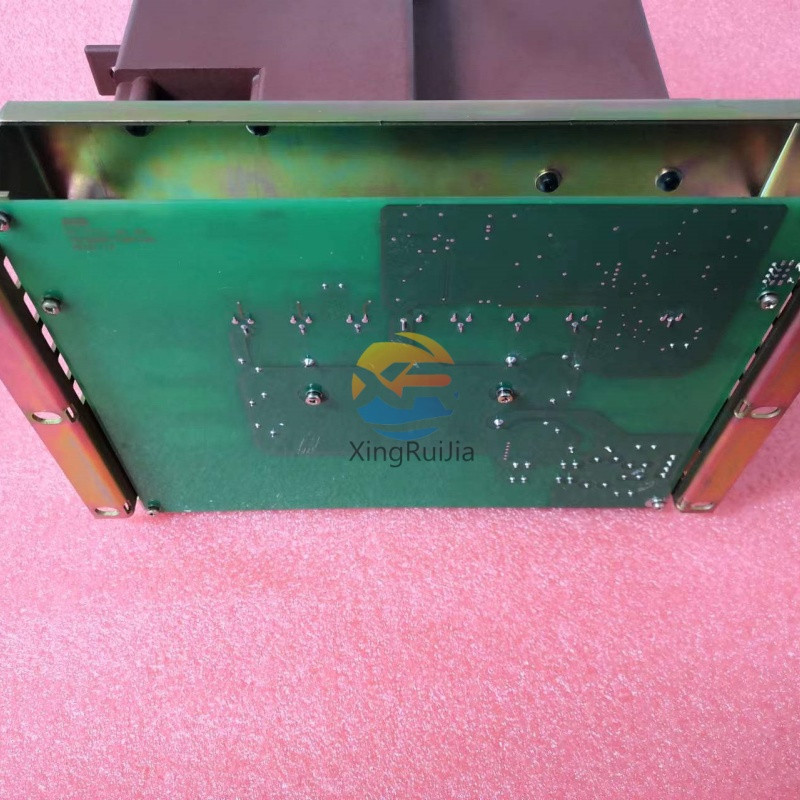

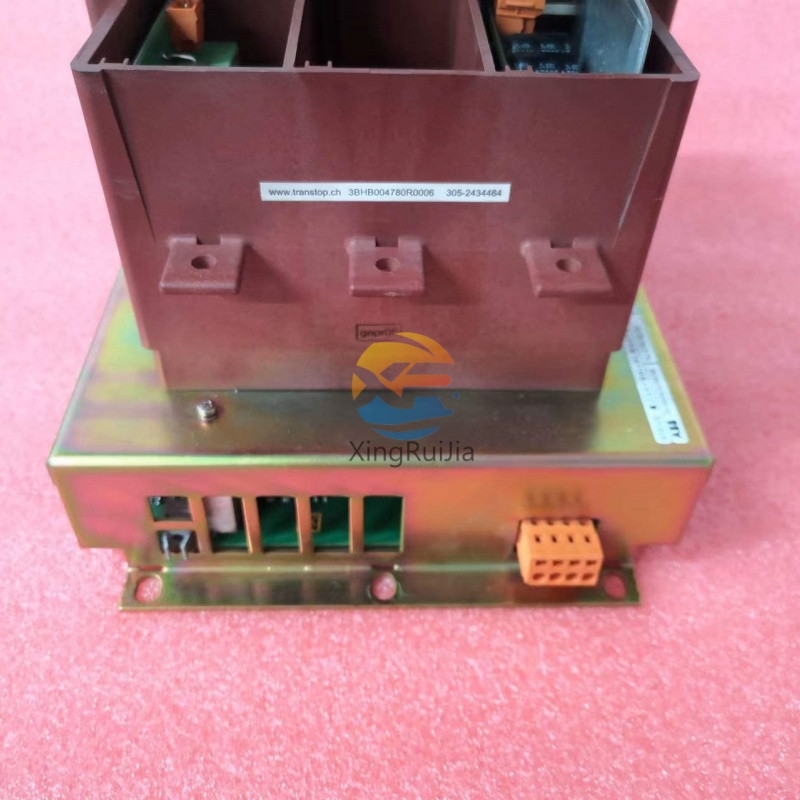

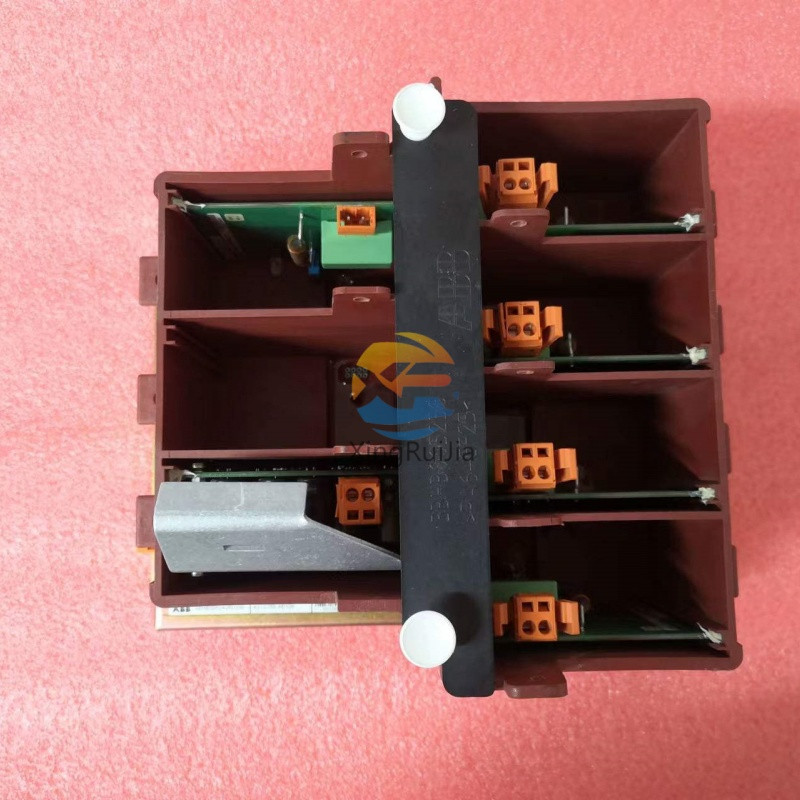

ABB KUC755AE106 3BHB005243R0106 | Advanced Excitation System Controller for Synchronous Machines

The ABB KUC755AE106 3BHB005243R0106 is a high-performance, fault-tolerant excitation controller module integral to ABB's Ability™ Symphony Plus distributed control system (DCS). This specialized controller is engineered for the precise and reliable control of excitation systems in synchronous generators and large synchronous motors. Its primary function is to regulate the generator's terminal voltage and reactive power output by meticulously controlling the field current supplied to the rotor, thereby ensuring grid stability, power quality, and operational protection.

In power generation plants and large industrial facilities, the excitation system is paramount for maintaining synchronous machine stability under varying load conditions, during faults, and through system transients. The KUC755AE106 3BHB005243R0106 serves as the intelligent core of this system, executing complex control algorithms for Automatic Voltage Regulation (AVR) and Field Current Regulation (FCR). For engineers and project managers in the power generation, oil & gas, and heavy industries, this controller represents a critical component for ensuring the reliability and efficiency of their rotating machinery.

This detailed product page provides an in-depth technical analysis of the KUC755AE106's functionality, specifications, and its pivotal role within modern excitation systems.

Product Overview and Core Functionality in Excitation Systems

An excitation system controls the DC current in the field winding of a synchronous machine. The KUC755AE106 module is the digital heart of such a system, performing several critical functions:

• Automatic Voltage Regulation (AVR): This is its primary control mode. The module continuously monitors the generator's terminal voltage and compares it to a setpoint. It then automatically adjusts the field current to maintain a constant voltage, compensating for changes in load and power factor.

• Field Current Regulation (FCR): Also known as Manual Control, this mode allows operators to set a specific field current. This is used during generator start-up, shut-down, or as a backup if the AVR mode fails.

• Power System Stabilizer (PSS): The module can host PSS algorithms that dampen low-frequency power oscillations in the grid by providing a supplementary control signal to the AVR, enhancing overall power system stability.

• Protection and Limiting Functions: It incorporates critical protection features such as Over-Excitation (OEL) and Under-Excitation (UEL) limiters to protect the generator from thermal damage and loss of synchronism.

• Seamless DCS Integration: As part of the Symphony Plus platform, it allows for centralized monitoring, data logging, historical trending, and remote control from the main plant operator stations.



Key Features and Operational Advantages

The KUC755AE106 is designed with robust features tailored for the critical nature of excitation control:

• Triple Modular Redundant (TMR) Architecture Support: For the highest level of availability, the controller can be configured in a TMR setup. Three independent channels process data simultaneously, with a hardware voting system to mask any single-point failure, ensuring continuous operation even during a fault.

• High-Speed Deterministic Processing: The module executes control loops with millisecond precision, which is essential for rapidly responding to grid disturbances and maintaining voltage stability.

• Robust Industrial Design: Built to endure the challenging conditions of power plant environments, including temperature fluctuations, humidity, and electromagnetic interference (EMI).

• Comprehensive Diagnostics and Monitoring: Features advanced self-diagnostics for the controller, its power supply, and communication links. It provides real-time status and pre-emptive fault alerts to minimize downtime.

• Flexible I/O Integration: Directly interfaces with ABB's S800 I/O family, connecting to a wide array of field devices such as Voltage and Current Transformers (VT/CT), circuit breaker status contacts, and the thyristor gates of the static exciter.



Detailed Technical Specifications

The following table provides a detailed breakdown of the technical specifications for the ABB KUC755AE106 3BHB005243R0106.

Typical Applications and Industries Served

The KUC755AE106 is deployed wherever large synchronous machines are critical to operations:

• Power Generation Plants:

  • Hydroelectric Power Plants: Controls excitation for hydro-generators, managing voltage during rapid load changes.

  • Thermal Power Plants (Coal, Gas): Regulates voltage for generators driven by steam or gas turbines.

  • Nuclear Power Plants: Provides highly reliable voltage control for critical generator assets.

• Industrial Facilities:

  • Metals & Mining: Controls synchronous motors driving large ball mills, mine hoists, and compressors, improving power factor.

  • Oil & Gas: Manages excitation for large synchronous motors and generators on offshore platforms and in refineries.

  • Pulp & Paper: Provides precise control for synchronous motors in paper mills.

System Integration and Architecture

The KUC755AE106 fits into a typical excitation system architecture as follows:

1. Generator Terminals: Voltage (VT) and Current (CT) transformers provide feedback signals.

2. S800 I/O Modules: Analog Input (AI) modules read VT/CT signals. Digital Input (DI) modules read breaker status. Analog Output (AO) modules send signals to the exciter.

3. ABB KUC755AE106 3BHB005243R0106 Controller: Processes all inputs, executes AVR/FCR/PSS logic, and determines the required field current.

4. Static Exciter: Receives control signals from the KUC755AE106 and converts AC power to the DC power required for the generator field winding.

5. Symphony Plus Network: Connects the controller to operator workstations and engineering stations for supervision and configuration.

6. Generator Field Winding: The final actuator where the controlled DC current establishes the magnetic field.

Why Source a Genuine ABB KUC755AE106 3BHB005243R0106?

The integrity of your generator's control and protection depends on this module's reliability.

• Guaranteed Performance and Grid Compliance: A genuine module ensures precise voltage control, which is critical for meeting grid code requirements and avoiding penalties.

• High Availability with TMR: The ability to deploy in a TMR configuration makes it ideal for applications where unplanned downtime is not an option.

• Seamless Compatibility: Guaranteed to work with ABB's Control Builder M engineering tools and the S800 I/O system, ensuring straightforward integration and troubleshooting.

• Long-Term Reliability: Manufactured with high-quality components to provide a long, predictable service life in demanding environments.

• Full Technical Support: Access to accurate technical documentation and support is ensured when using a genuine ABB part.

Frequently Asked Questions (FAQ)

Q1: What is the main difference between an Excitation Controller and a standard Turbine Controller?
A1: A Turbine Controller (e.g., KUC755AE105) governs the mechanical prime mover (speed, fuel/steam valves), while an Excitation Controller (KUC755AE106) governs the electrical output of the generator (voltage, reactive power). They work in tandem but control different parts of the generating unit.

Q2: Can the KUC755AE106 host a Power System Stabilizer (PSS) function?
A2: Yes, the module is capable of executing advanced PSS algorithms as a software function to dampen power system oscillations, a critical feature for grid stability.

Q3: What engineering tool is used to configure the AVR logic in this controller?
A3: It is programmed using ABB's Control Builder M engineering software, which provides dedicated function blocks for excitation control (AVR, FCR, limiters).

Q4: Is this module suitable for a brownfield project upgrading an old analog exciter?
A4: Absolutely. The KUC755AE106 is an ideal digital upgrade for legacy analog excitation systems, providing enhanced control, diagnostics, and integration capabilities into a modern DCS.

Call to Action

Ensure the stability, efficiency, and protection of your synchronous machines with the industry-proven ABB KUC755AE106 excitation controller.

Contact us today for a competitive quotation, detailed technical datasheets, and current stock availability. Our specialist team is ready to support your project requirements.
